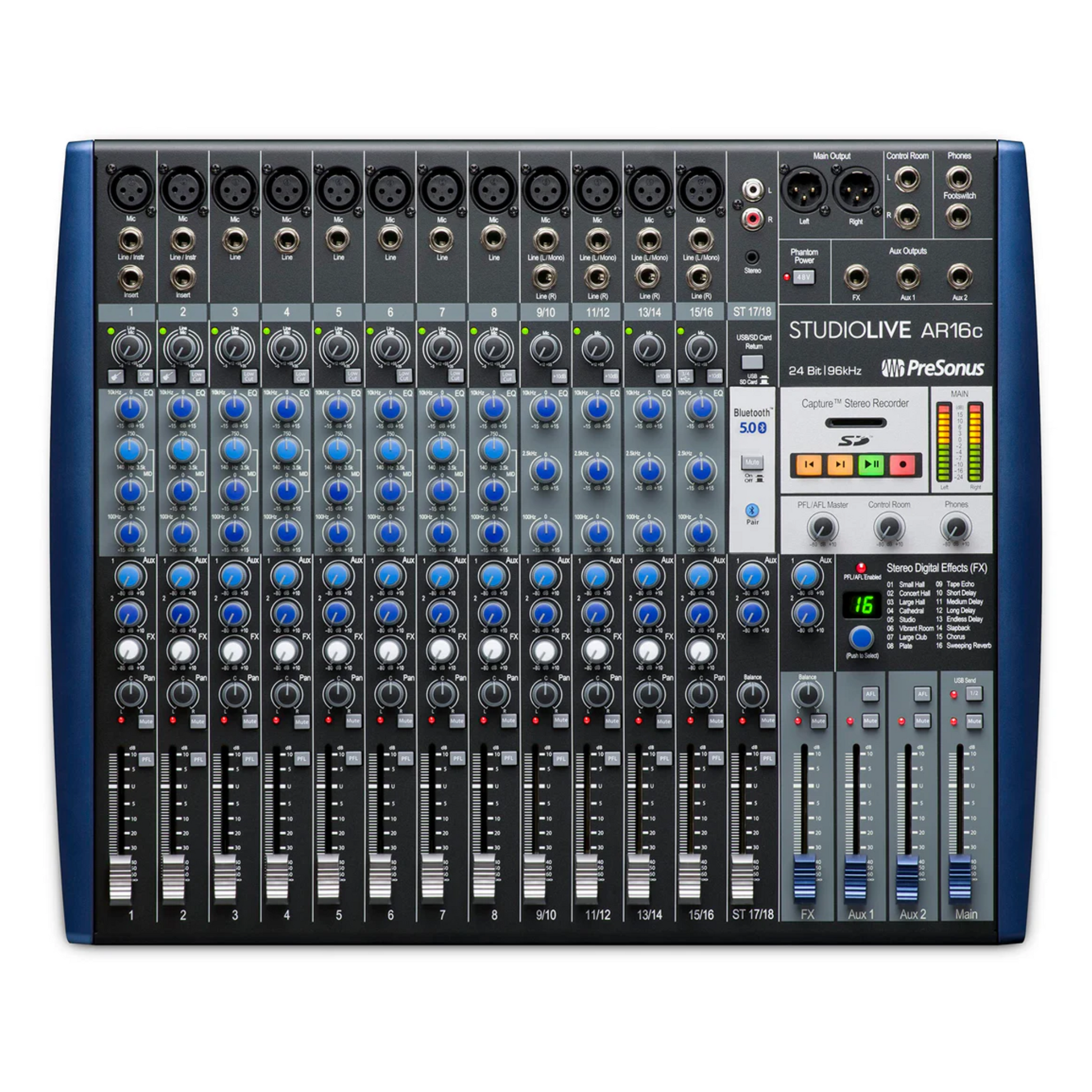

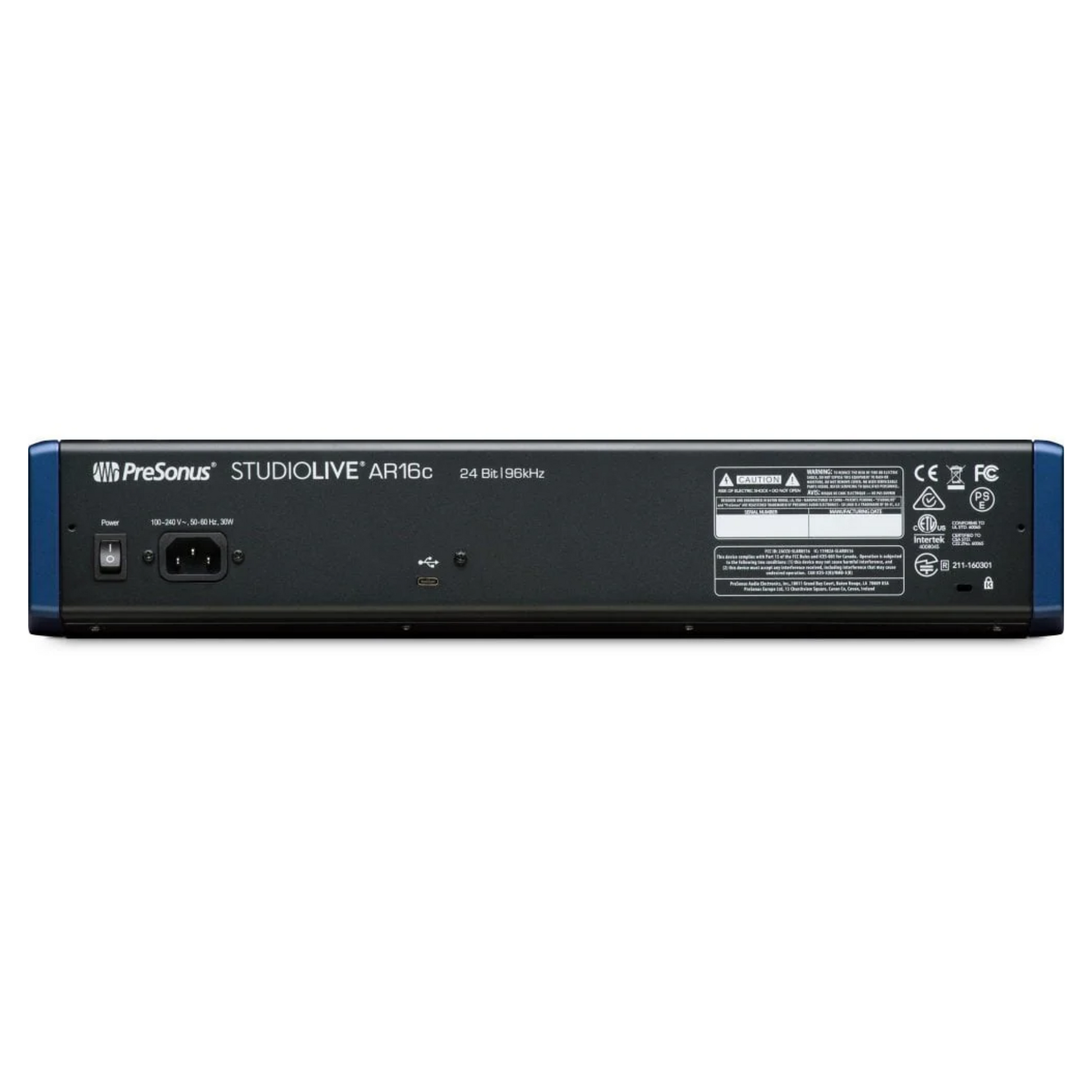

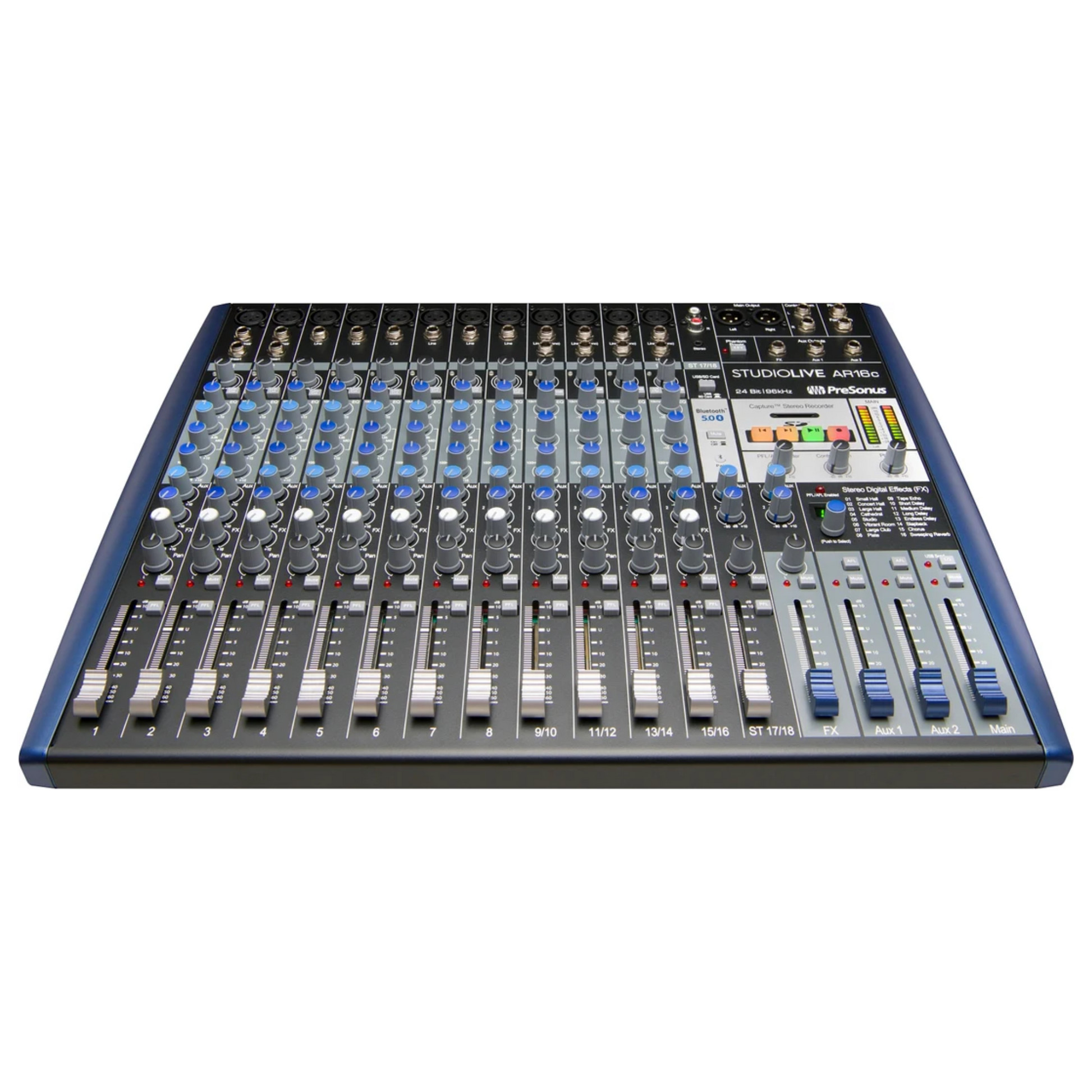

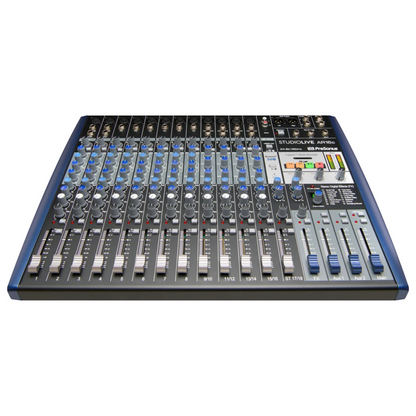

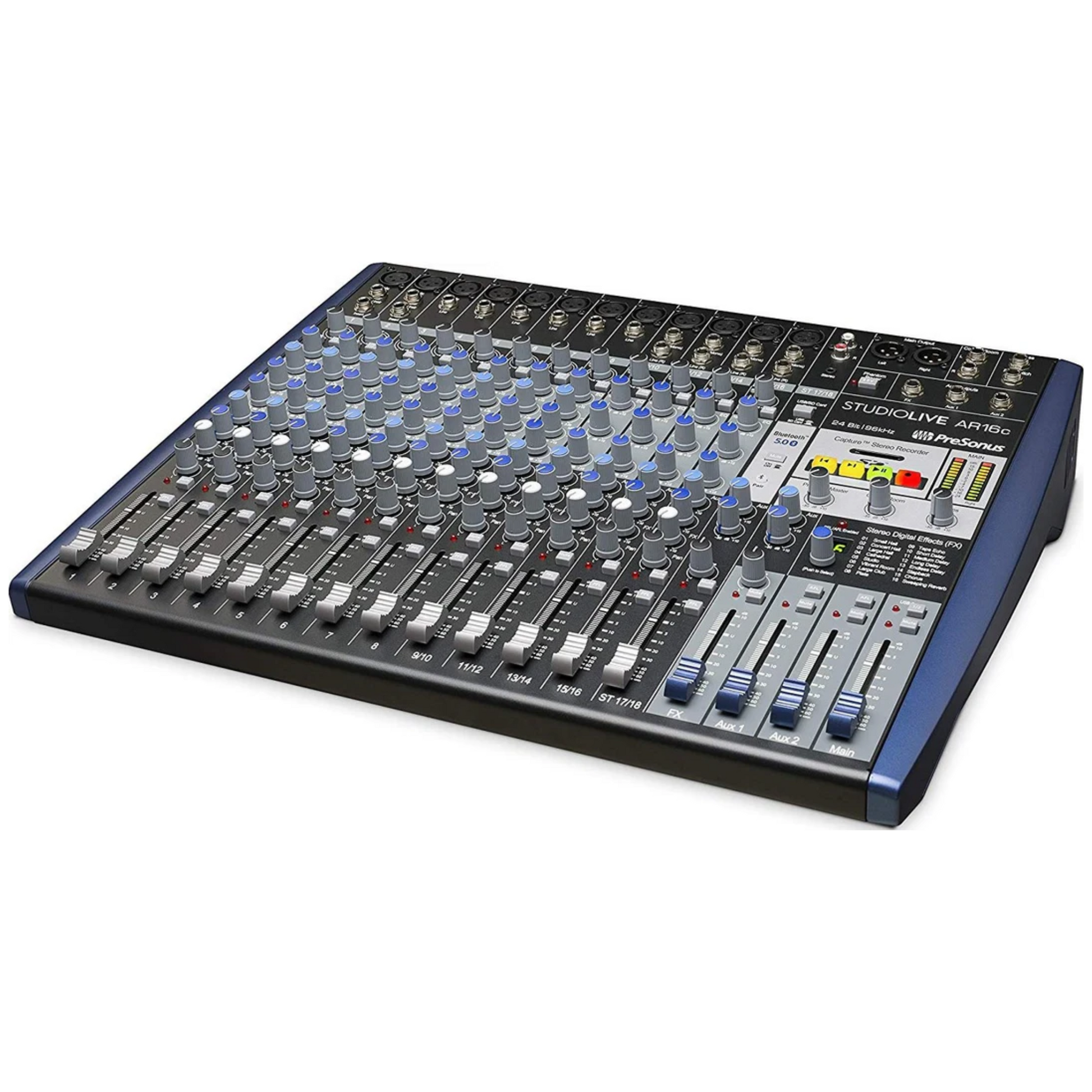

PreSonus StudioLive AR16c Mixer

2,899.00 SR

Don’t let the classic analog mixer design fool you—the StudioLive® AR16c was built to record. Featuring a pristine analog front end with 12 high-gain XMAX mic preamps and an 18x4, 24-bit, 96 kHz, USB-C™-compatible USB 2.0 audio interface, the StudioLive AR16c’s hybrid design makes it simple to mix and record. Add in a musical 3-band analog EQ, mic/line boost for low-level sources including vintage synths, all-new digital effects with rich reverbs and lush delays, Bluetooth® connectivity, and a stereo SD recorder... and you have a mixing and recording powerhouse that fulfills the needs of both modern musicians and content creators.

Guaranteed safe & secure checkout

Features

18x4 24-bit/96 kHz, USB 2.0 (over USB-C™ connection) audio recording interface; record every channel plus the main mix
2x2 SD recorder (record main mix); supports SD and SDHC formats up to 32 GB
18-channel analog mixer with:
- 12 balanced microphone inputs with XMAX mic preamps plus two instrument inputs, 16 balanced line level inputs, and 2 insert points
- Stereo Super Channel (Ch. 17/18) with Bluetooth®0 wireless, RCA inputs, 1/8-inch stereo input, and switchable SD/USB stereo playback
- Stereo effects processor with 16 presets, dedicated send and return, and bypass footswitch jack
Complete recording solution: Includes Capture™ live-recording software and Studio One® Artist DAW for Mac® and Windows

Highlights & Specs

Specifications

Electronics

Voltage

100-120V

Miscellaneous

Connection Type

IEC

Microphone Preamp

Total Harmonic Distortion

<0.01% (Minimum Gain, A-Weighted)
Signal To Noise Ratio

94 dB (+4 dBu)
Common Mode Rejection Ratio

65 dB (1 kHz, +55 dB Gain)
Gain Control Range

43 dB (+12 to +55 dB)
Maximum Input Level

+9 dBu ±1.0 dB (Unity Gain)
Phantom Power

+48V, ±3V, Global
Frequency Response

20 Hz to 20 kHz, +0.5/-1.5 dB
Input Impedance

1 kΩ
Equivalent Input Noise

< 128 dBu (+55 dB gain, 150Ω Input, 20 Hz-22 kHz)

Line Inputs

Maximum Level

+26 dBu ±1.0 dB (Minimum Gain, 1 kHz@0.5% THD + N)
Line Inputs Gain Range

Mono: 40 dB, ±1 dB, Stereo: 0 dB or +10 dB
Line Inputs Frequency Response

20 Hz to 20 kHz, +0.5/-1.5 dB
Line Inputs Total Harmonic Distortion

<0.01% (1 kHz, -1 dBFS, A-Weighted)
Line Inputs Impedance

10 kΩ (Balanced)

Main And Line Outputs

Main And Line Outputs Frequency Response

20 Hz to 20 kHz, +0.5/-1.5 dB
Main And Line Outputs Total Harmonic Distortion

<0.01% (Bandwidth 20 Hz - 20 kHz, -1 dBFS, Unweighted)

Headphone Outputs

Maximum Output

150 mW /Channel at 60 Ω
Frequency Response

20 Hz to 20 kHz, +0.5/-1.5 dB
Dynamic Range

>103 dB (A-Weighted)
Total Harmonic Distortion

<0.01% (Bandwidth 20 Hz - 20 kHz, -1 dBFS, Unweighted)

Digital Audio

Dynamic Range

105 dB (A-Weighted, 48 kHz)
Bit Depth

24
Supported Sample Rates

44.1, 48, 88.2, 96 kHz
