Features

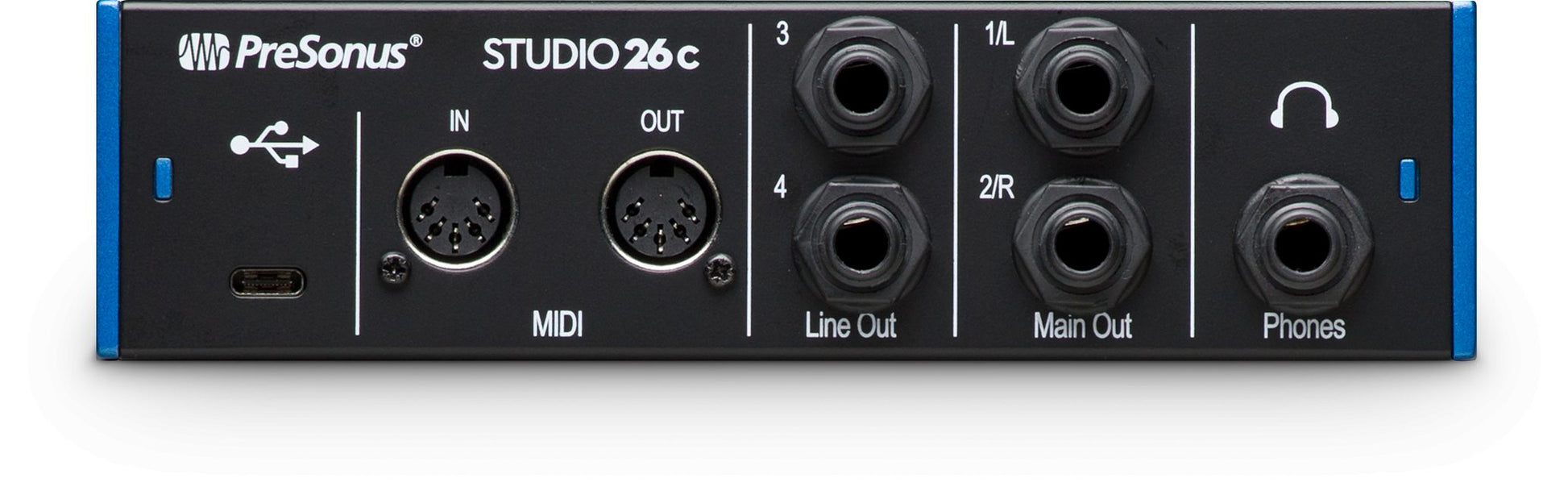

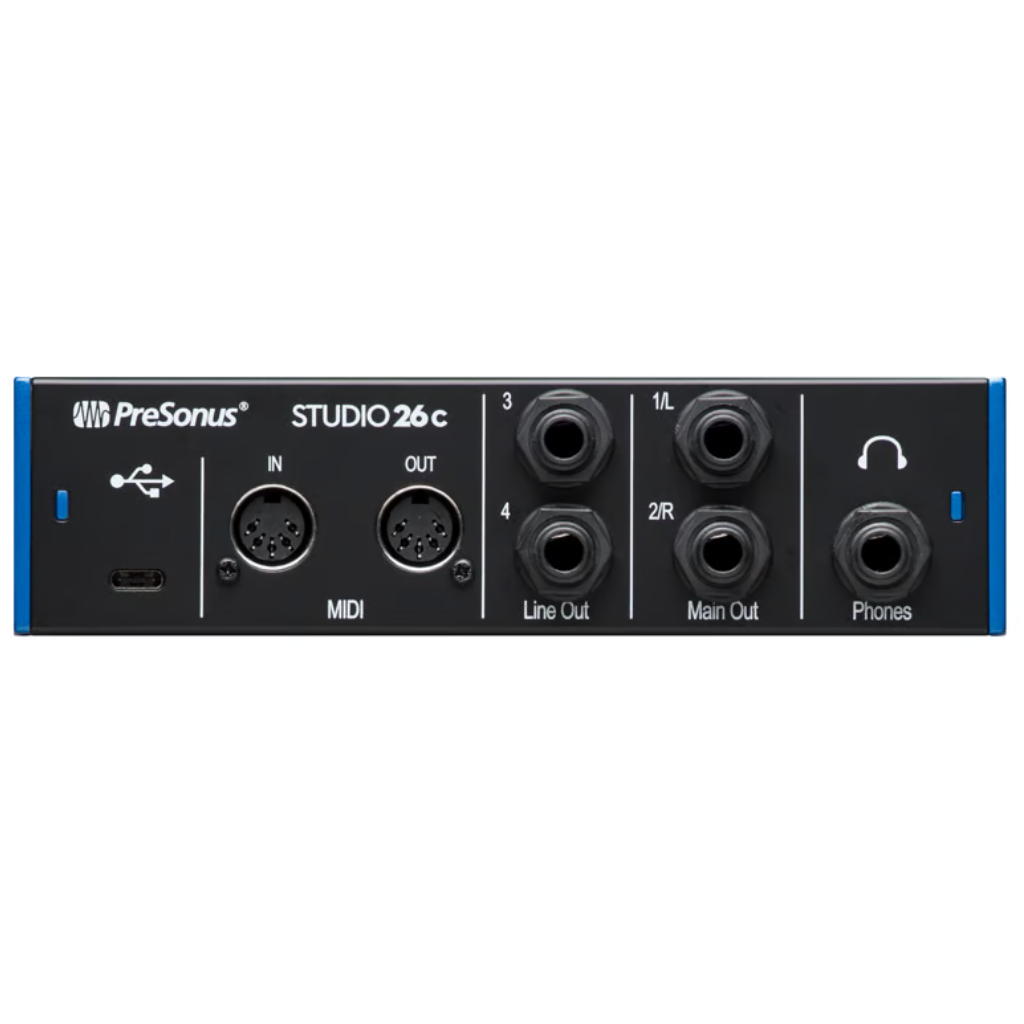

Input / Output
- Simultaneous I/O up to 2 inputs/4 outputs

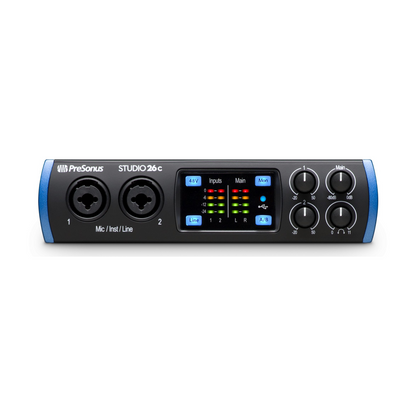

- 2 mic/instrument/line inputs with XMAX-L mic preamps
-
2 balanced ¼-inch TRS main outputs
- DC coupled for sending control voltages *
-
2 balanced ¼-inch TRS line outputs for monitor mixing
- DC coupled for sending control voltages *
- 1 stereo headphone output
- MIDI In / Out
-
1 USB-C ®-compatible 2.0 port
- USB-C to USB-C and USB-C to USB-A cables included for compatibility with most computers

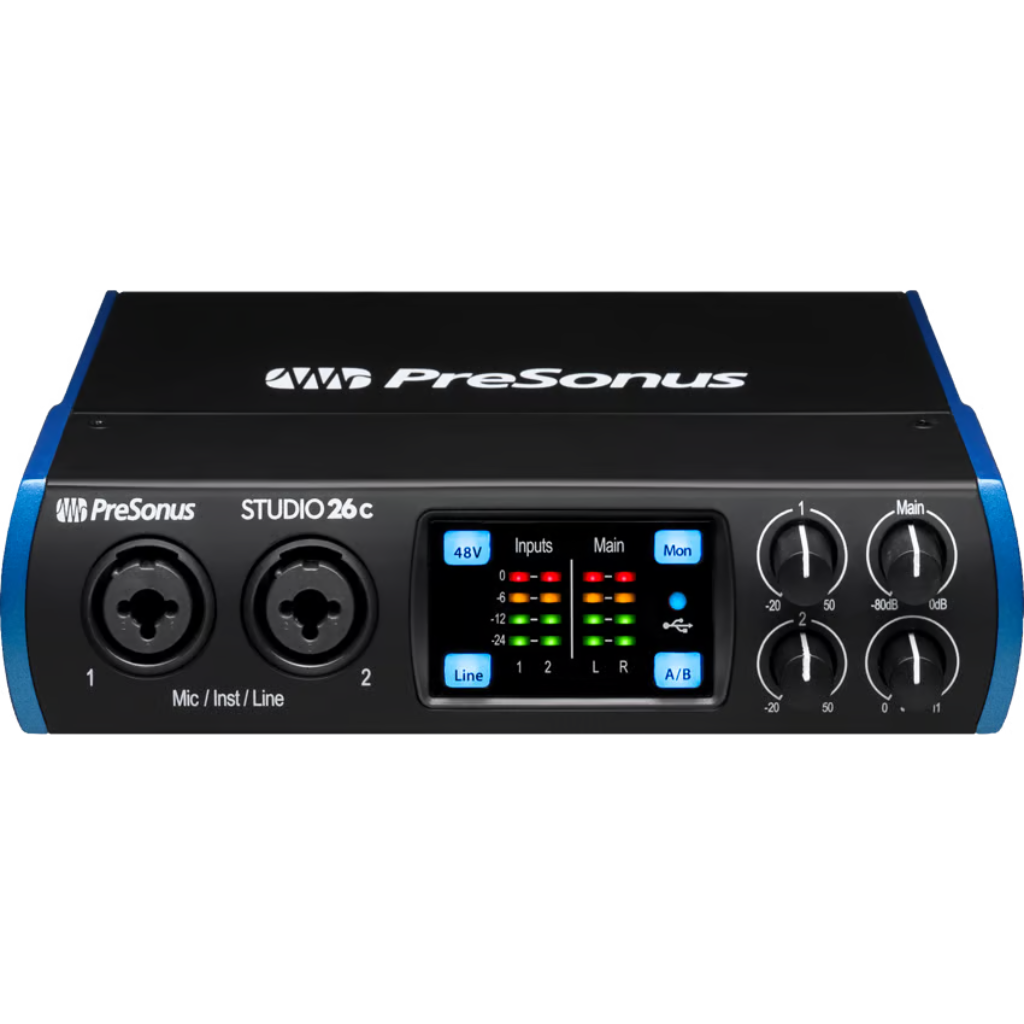

Meters, Controls, and Features
- Direct monitoring
- Cue mix A/B (for headphone output)
- Front-panel level controls for main outputs
- True + 48V phantom power for condenser microphones (global)
- 4 ladder-style LED level meters (2 input, 2 main output)
Integrated Software
- Studio One Artist ®
- Studio Magic Software Suite
- Ableton® Live Lite
Digital
- USB-C ® -compatible port (USB 2.0)
- 24-bit resolution
- 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates
Physical
- Road-rugged construction with all-metal chassis and metal knobs
- USB bus-powered
Computer system requirements:
Below are the minimum computer-system requirements for the Studio 26c.
macOS®
- macOS version 10.13 or later
- 200 MB storage space and 4 GB RAM for Universal Control (required for firmware updates)
- Available USB port
Windows®
- Windows 10 or later (64-Bit Only)
- 200 MB storage space and 4 GB RAM for Universal Control (required for firmware updates and low-latency ASIO support)
- Available USB port
Chrome OS
For information on compatibility with Chrome OS, click here.
iOS/iPadOS
For information on compatibility with iOS/iPadOS, click here.
Android
For information on compatibility with Android devices, click here.
The above are the hardware system requirements for this product.
DAW software and Operating System requirements vary.
Click here for Studio One’s system requirements.
Technical Specifications
General |
|
|---|---|
| Supported Sample Rates (kHz) | 44.1, 48, 88.2, 96, 176.4, or 192 |
| Converter Resolution | 24 bit |
| ADC Converter Dynamic Range | 114 dB |
| DAC Converter Dynamic Range | 114 dB |
Microphone Inputs |
|
|---|---|
| Maximum Level | +4.5 dBu (balanced, min gain) |
| Gain Range | 70 dB |
| Frequency Response | 20 Hz - 20 kHz (± 0.1 dB, min gain, 48 kHz) |
| Dynamic range | 110 dB (A-wtd, min gain) |
| THD + N | 0.004% (1 kHz, -1 dBFS, unity gain) |
| EIN | -125 dBu (max gain, 150Ω, A-wtd) |
| Input Impedance | 1.6 kΩ |
| Phantom power | +48 VDC (10 mA total) |
Line Inputs |
|
|---|---|
| Maximum Level | +19.5 dBu (balanced, min gain) |
| Gain Range | 70 dB |
| Frequency Response | 20 Hz - 20 kHz (± 0.1 dB, min gain, 48 kHz) |
| Dynamic range | 110 dB (A-wtd, min gain) |
| THD + N | 0.007% (1 kHz, -1 dBFS, min gain) |
| Input Impedance | 10 kΩ |
Instrument Inputs |
|
|---|---|
| Maximum Level | +14 dBu (unbalanced, min gain) |
| Gain Range | 70 dB |
| Frequency Response | 20 Hz - 20 kHz (± 0.15 dB, 48 kHz, min gain) |
| Dynamic range | 110 dB (A-wtd, min gain) |
| THD + N | 0.008% (1 kHz, -1 dBFS, min gain) |
| Input Impedance | 1 MΩ |
Line Outputs (Mains) |
|
|---|---|
| Type | ¼ "TRS Female, DC Coupled * |
| Maximum Level | +10 dBu (balanced) |
| Frequency Response | 20 Hz - 20 kHz (± 0.1 dB, unity gain, 48 kHz) |
| Dynamic range | 108 dB (A-wtd) |
| THD + N | 0.0015% (1 kHz, -1 dBFS) |
Line Outputs (3/4) |
|
|---|---|
| Type | ¼ "TRS Female, DC Coupled * |
| Maximum Level | +10 dBu (balanced) |
| Frequency Response | 20 Hz - 20 kHz (± 0.1dB, unity gain, 48 kHz) |
| Dynamic range | 113 dB (A-wtd) |
| THD + N | 0.008% (1 kHz, -1 dBFS) |
Headphone Outputs |
|
|---|---|
| Maximum Power | 30 mW / channel (56Ω load) |
| Frequency Response | 20 Hz - 20 kHz (± 0.2 dB, 56Ω load, 48 kHz) |
| Dynamic range | 104 dB (A-wtd, 56Ω load) |
| THD + N | 0.009% (1 kHz, -1 dBFS, no load) |
| Impedance Working Range | 32Ω to 300Ω |
Physical |
|
| Height | 1.75 "(44 mm) |
| Width | 7 "(180 mm) |
| Depth | 5.5 "(144 mm) |
| Weight | 1.6 lbs. (0.7 kg) |
