Product Hardware Specifications
- 25/37/49/61 velocity sensitive keys

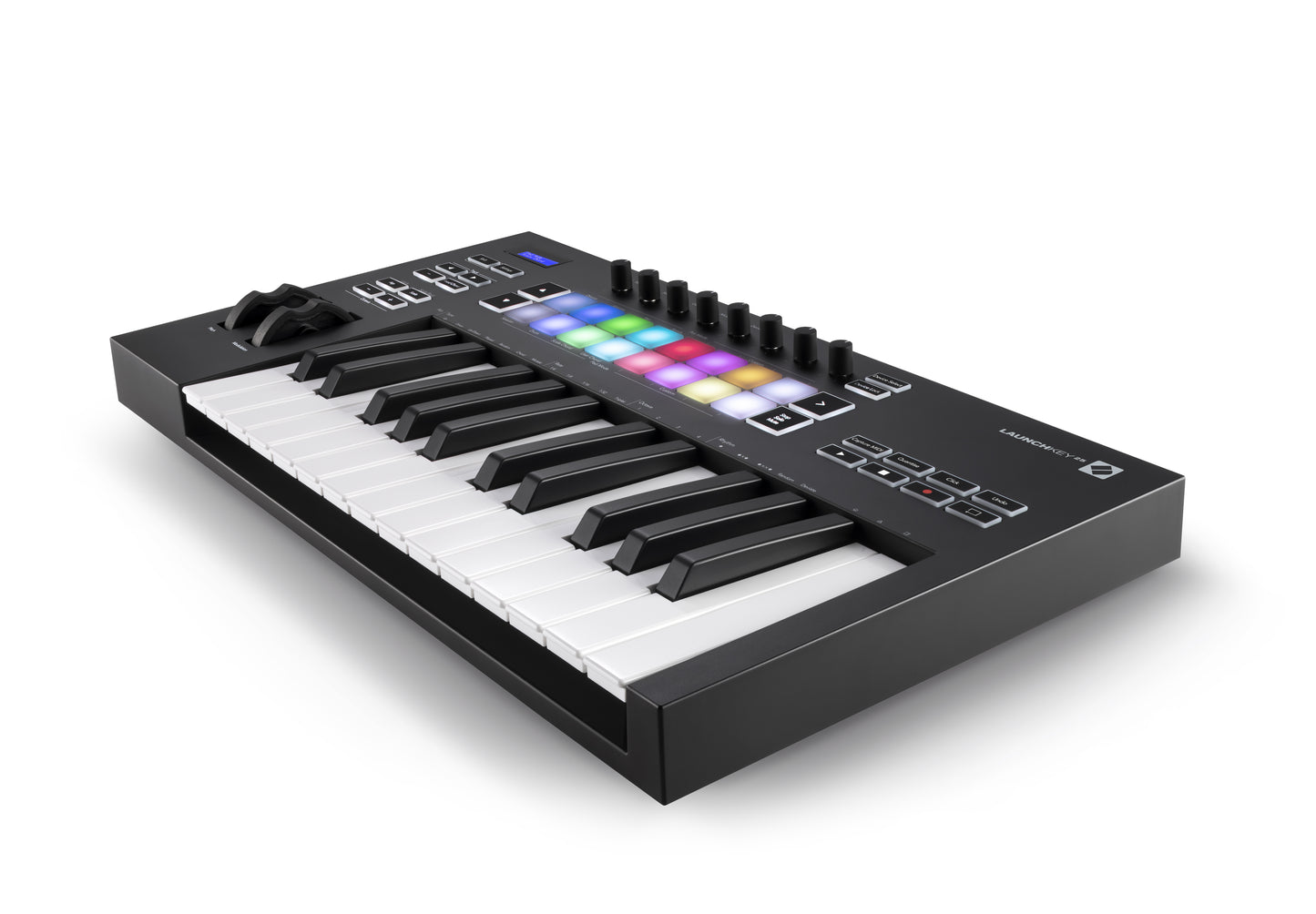

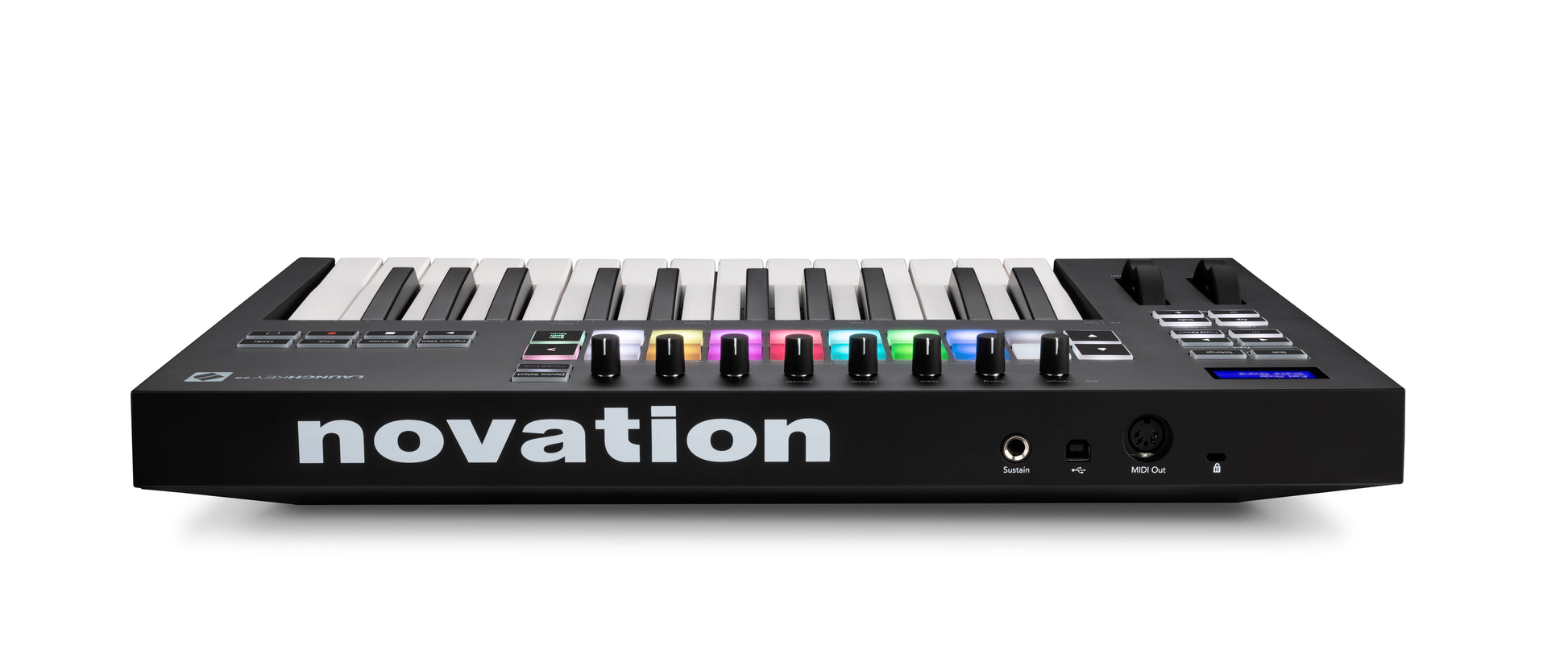

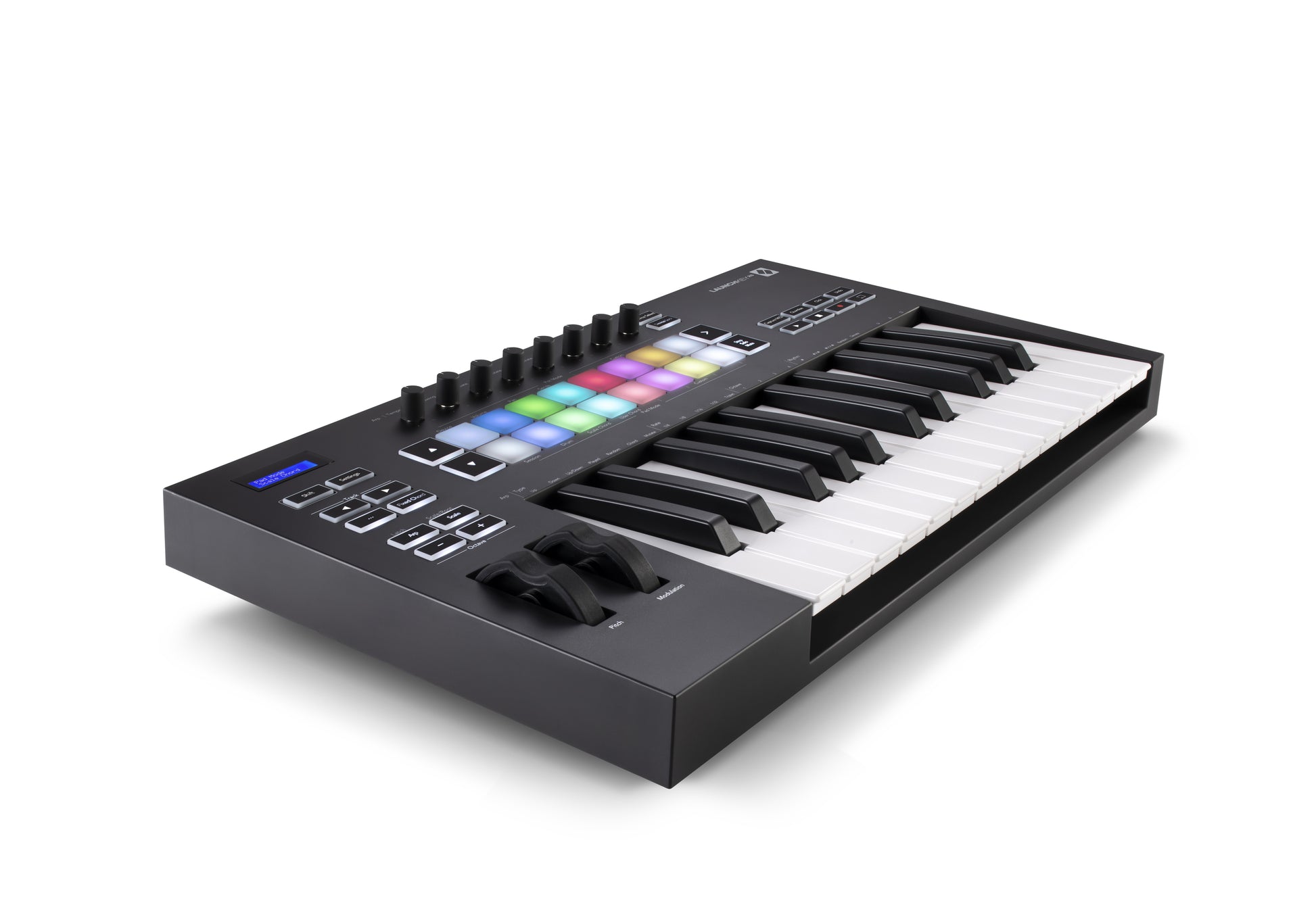

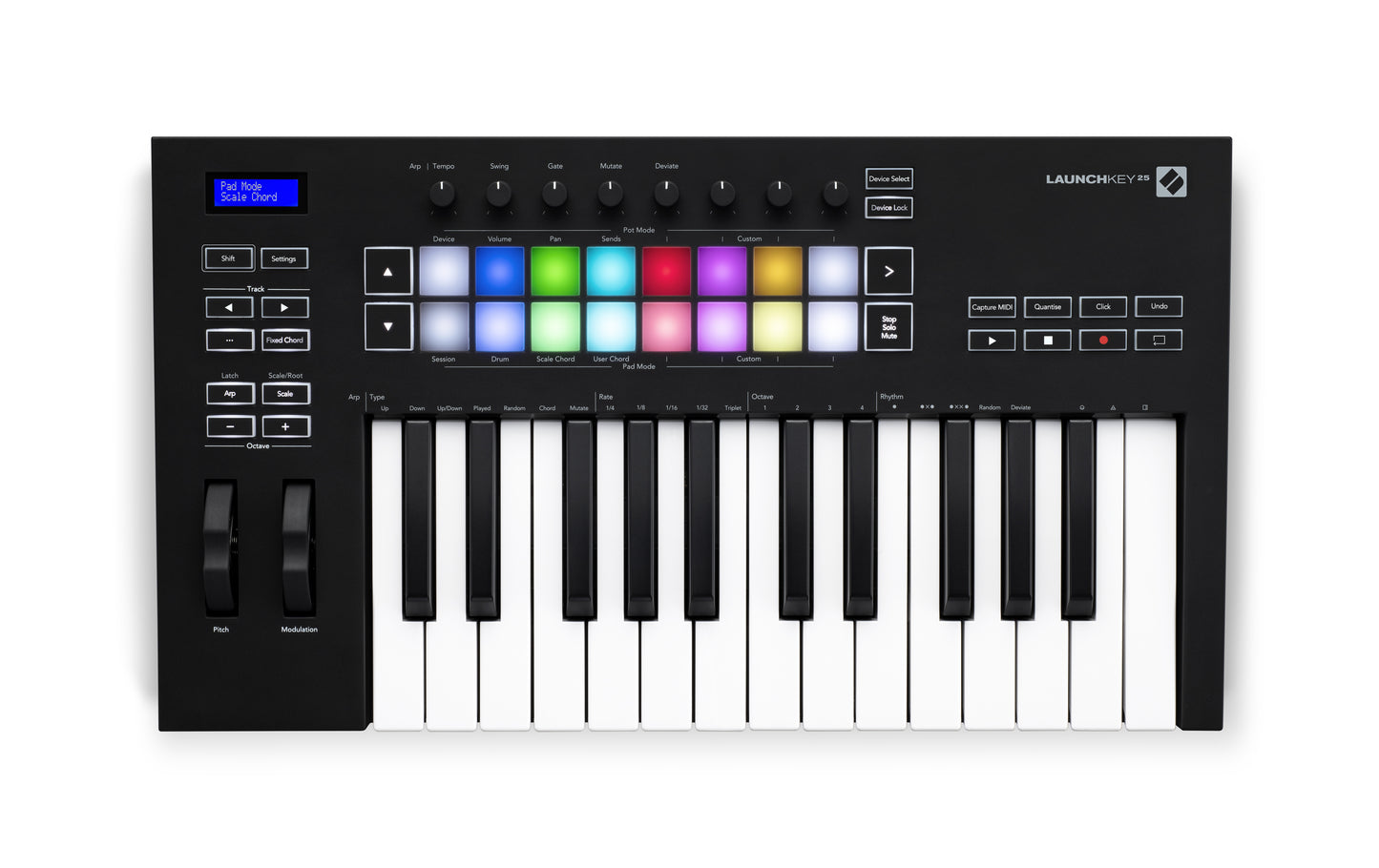

- Launchkey 25 - 258mm H, 463mm W, 77mm D

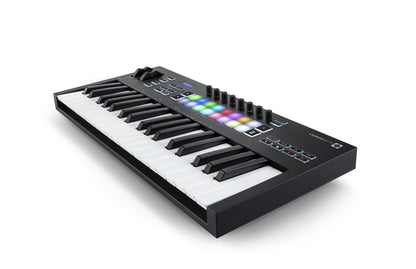

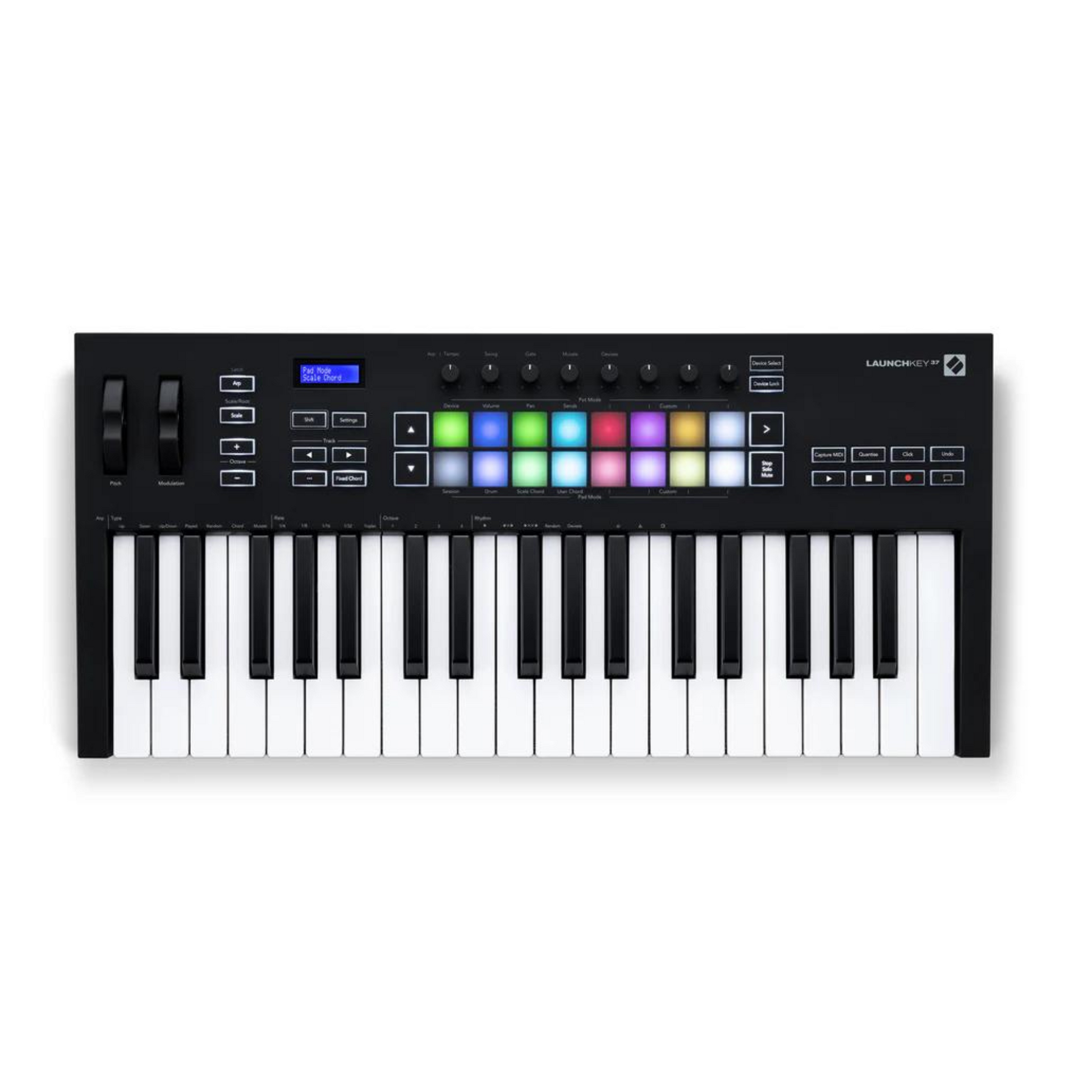

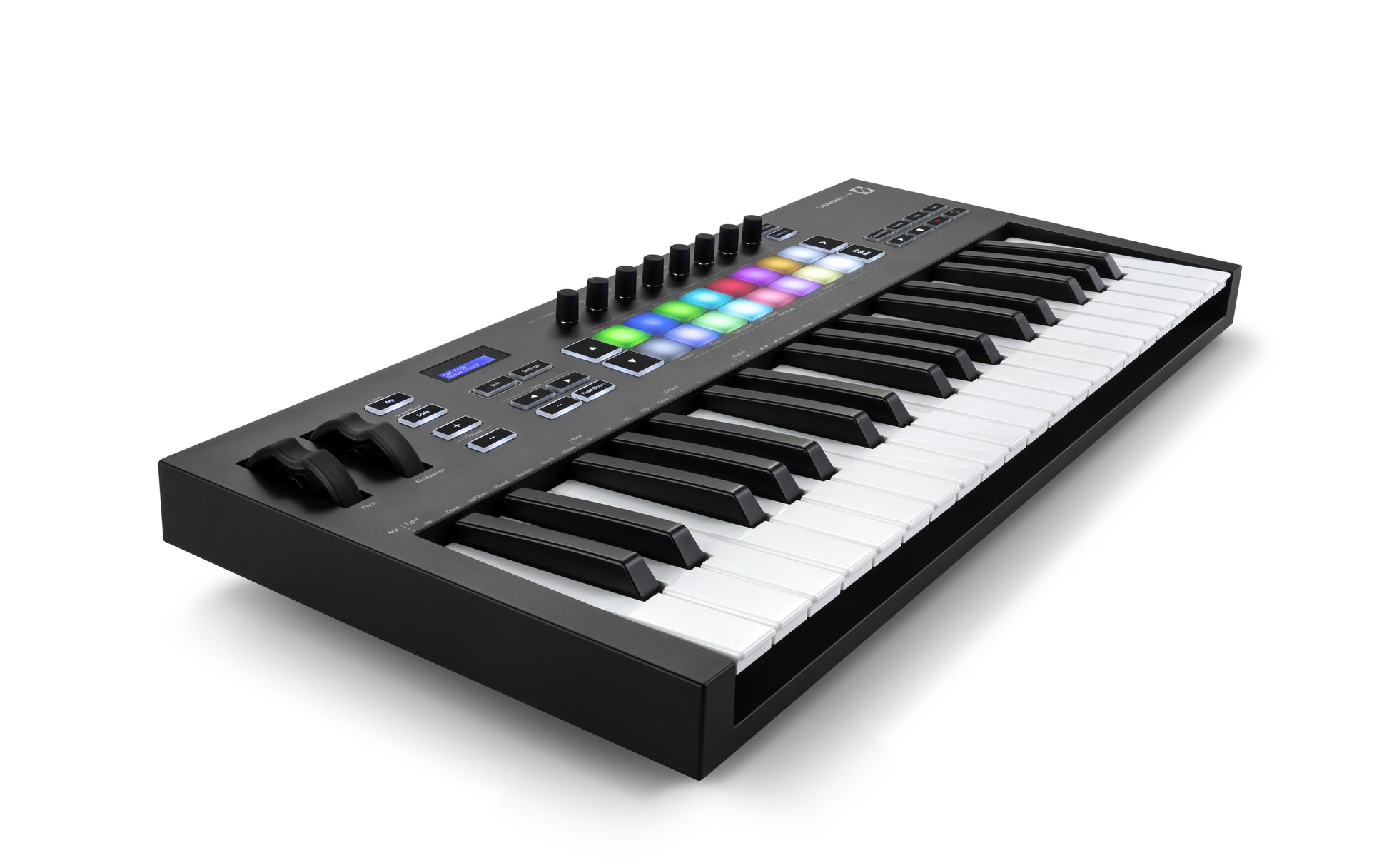

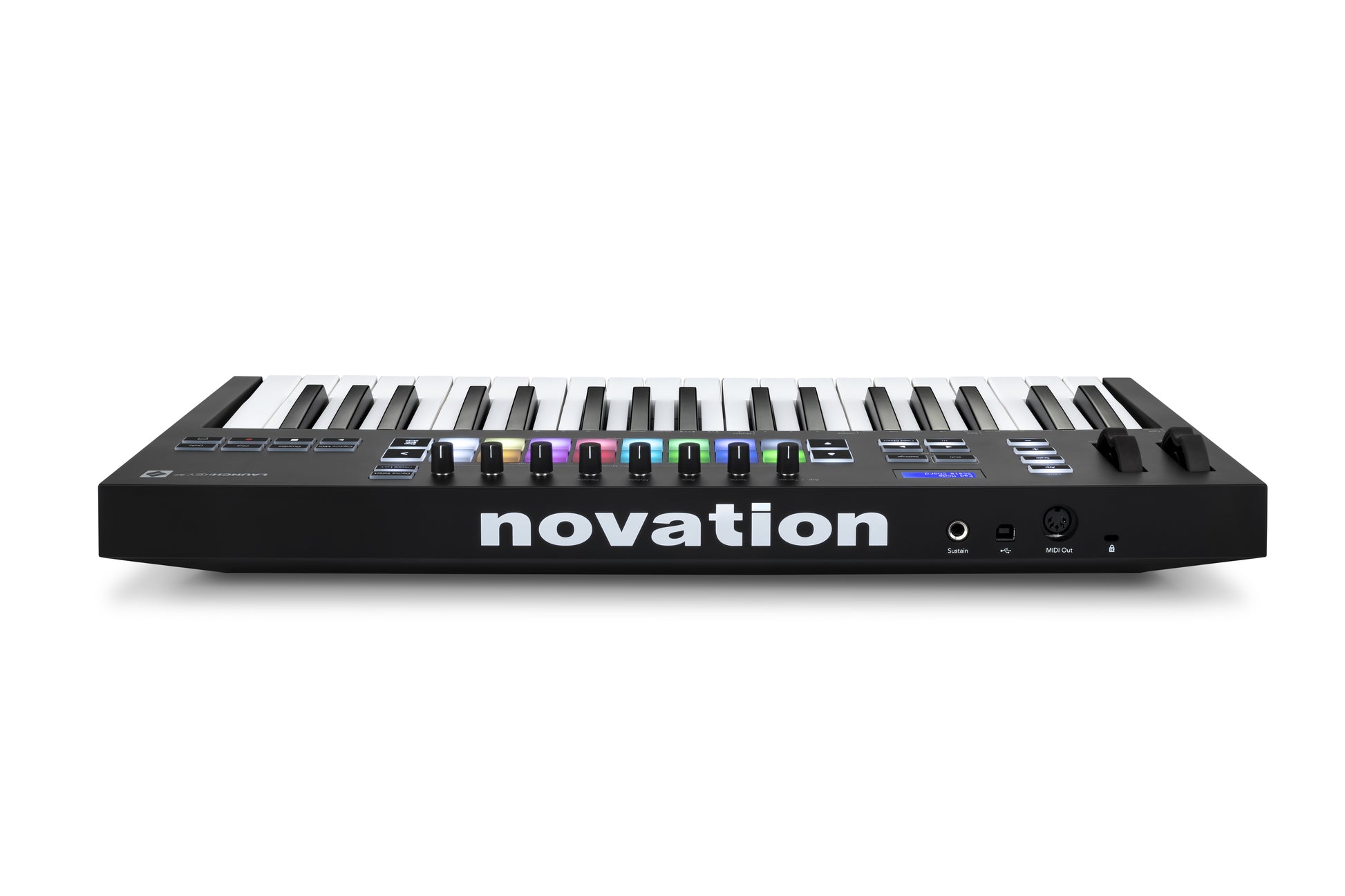

- Launchkey 37 - 258mm H, 555mm W, 77mm D

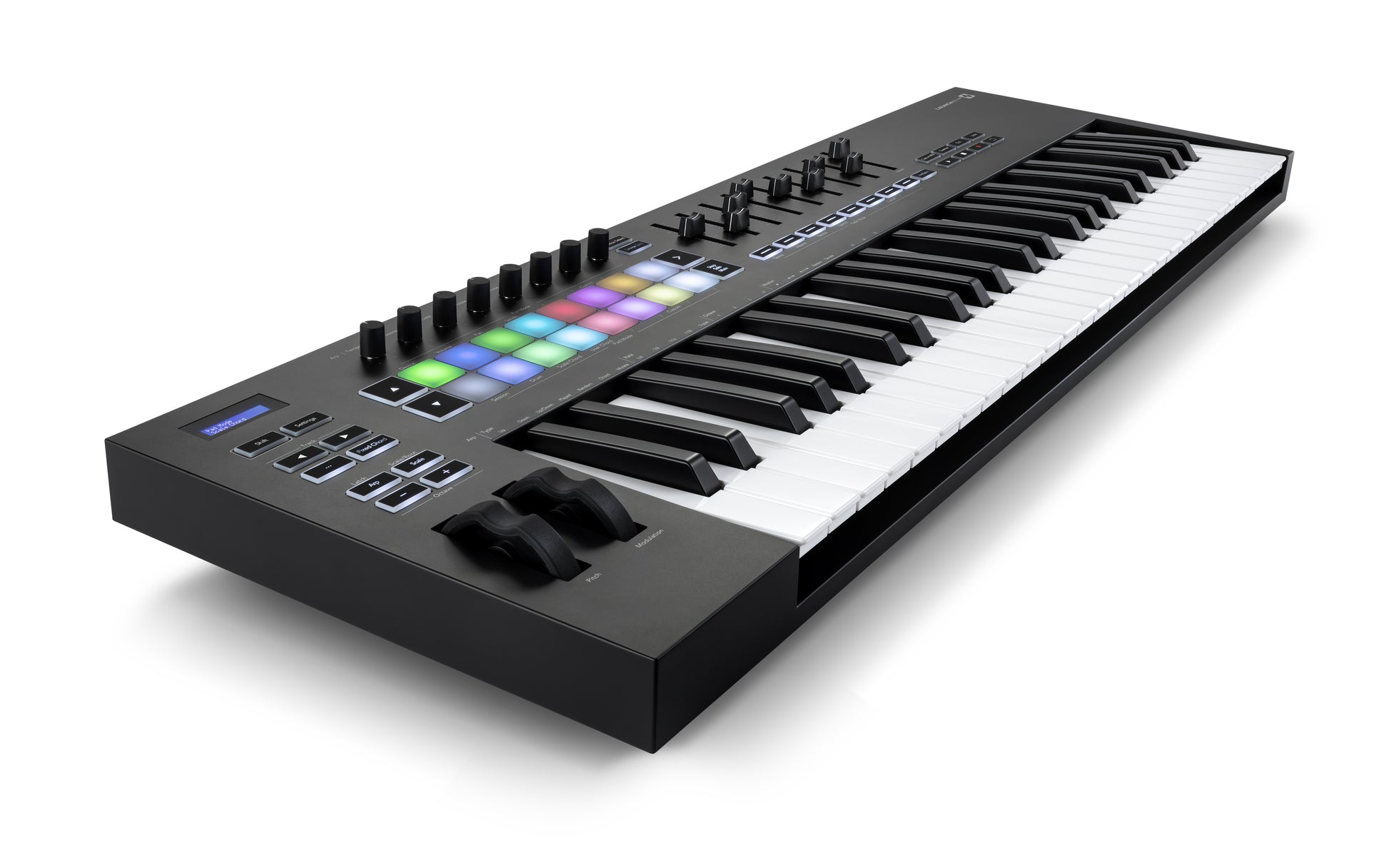

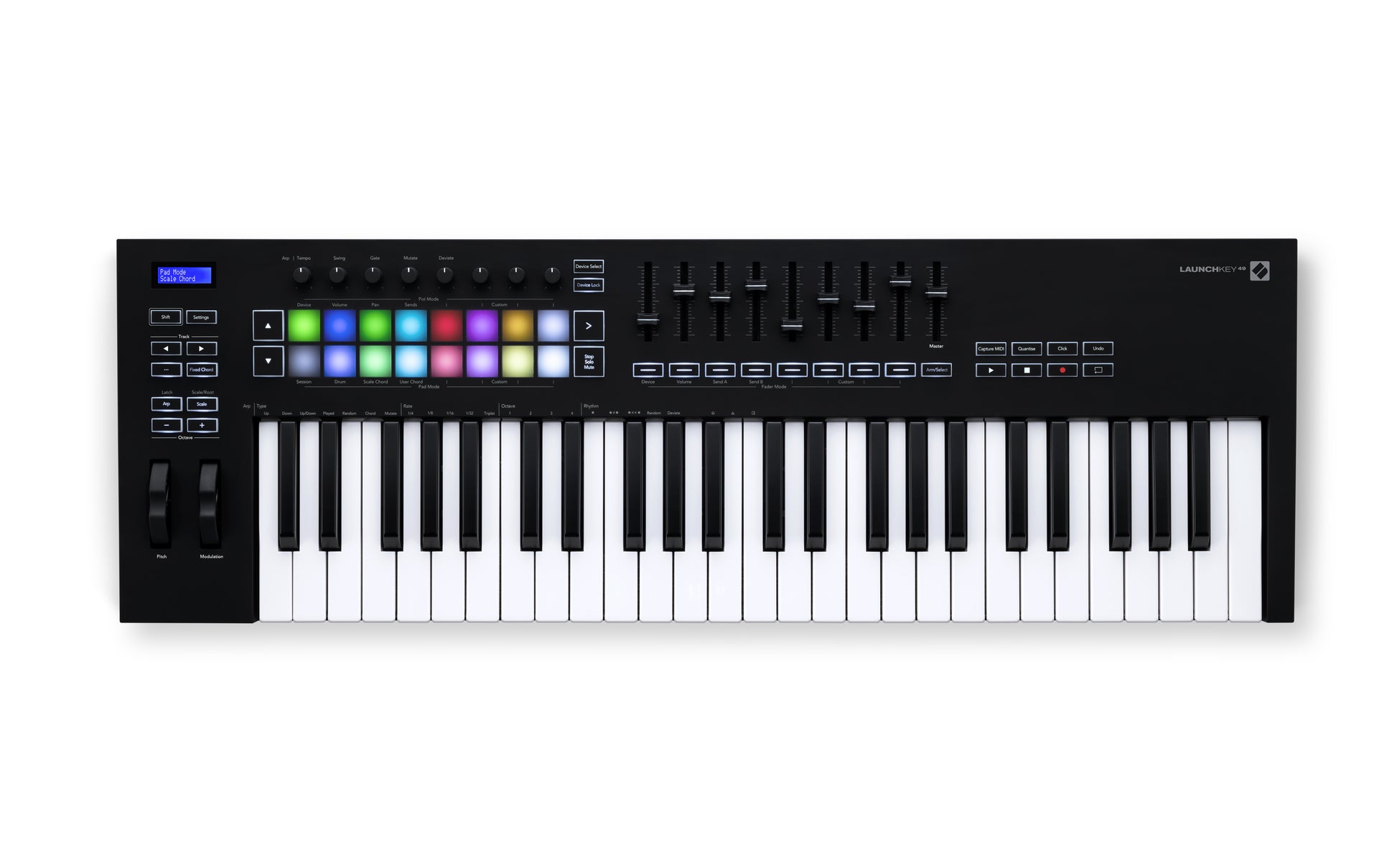

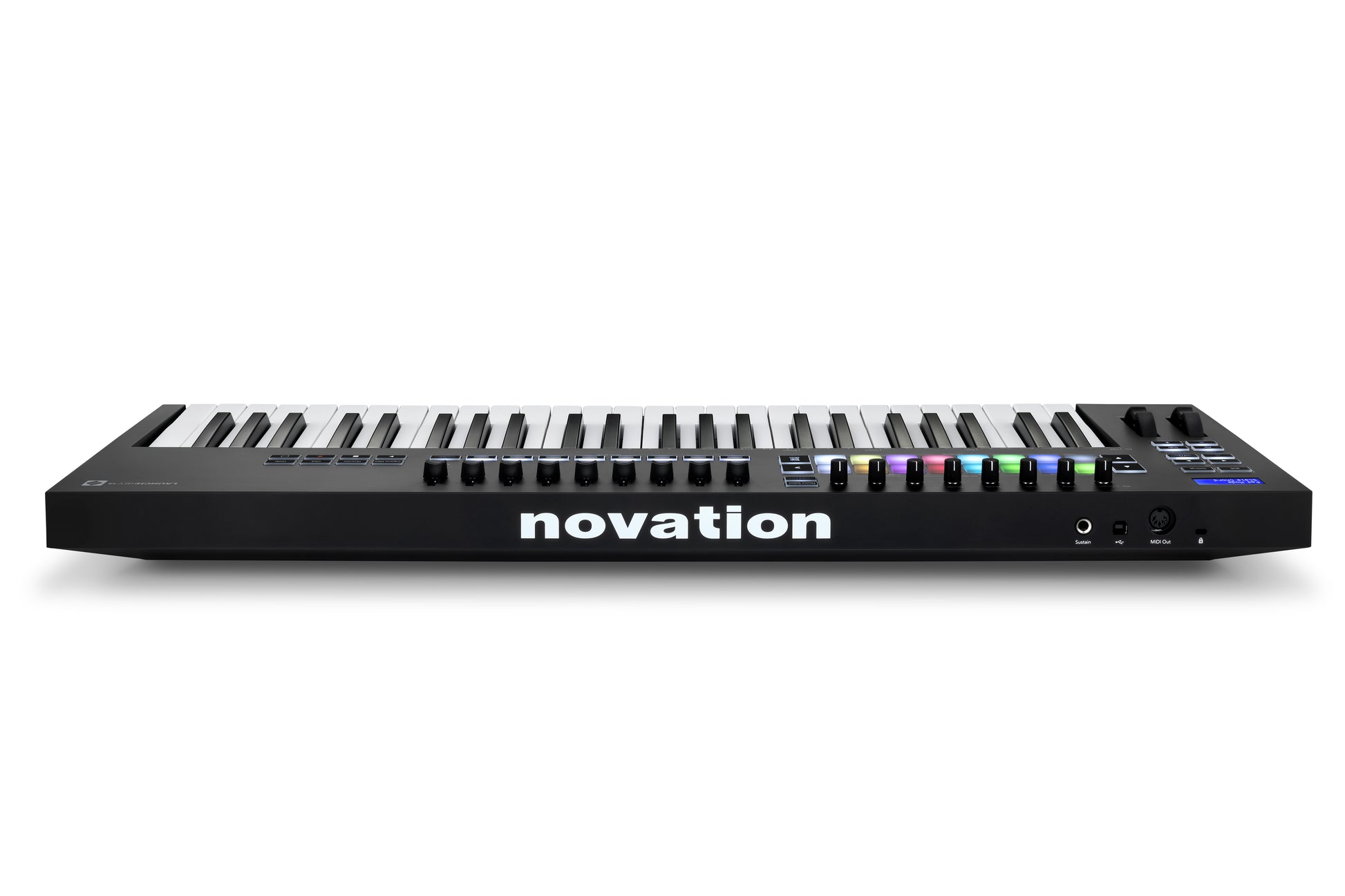

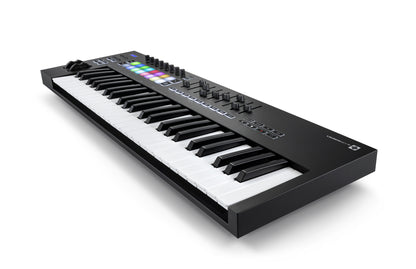

- Launchkey 49 - 258mm H, 789mm W, 77mm D

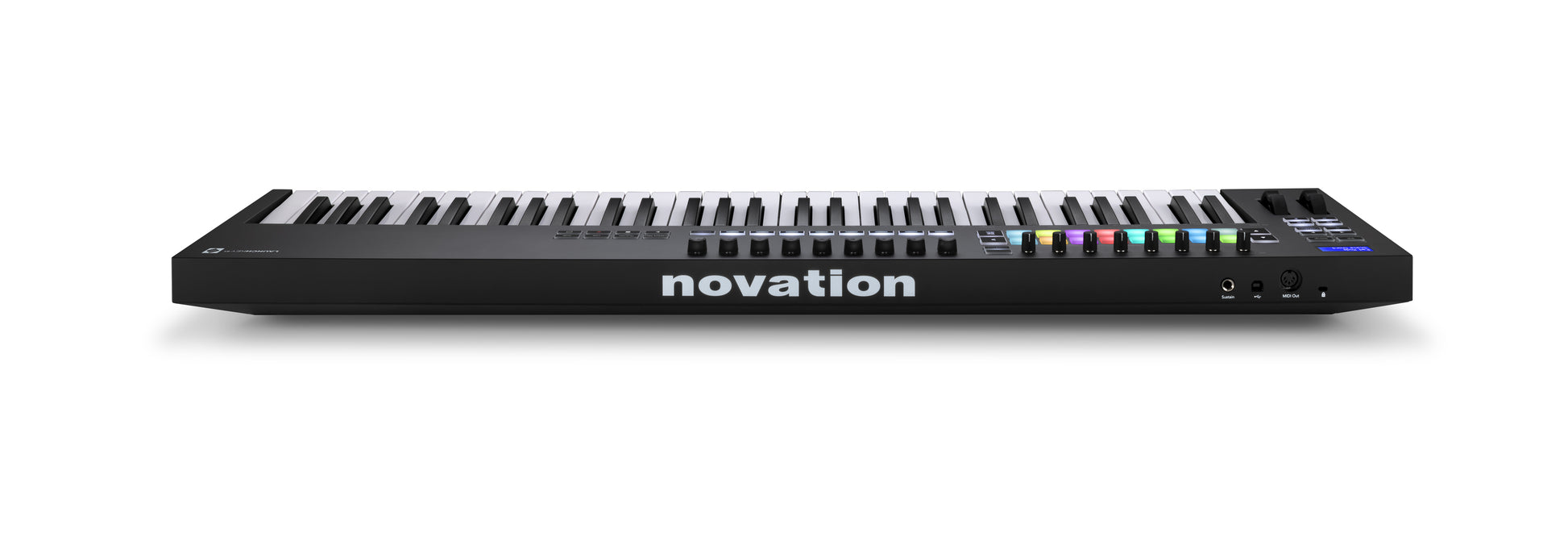

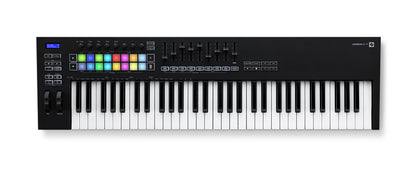

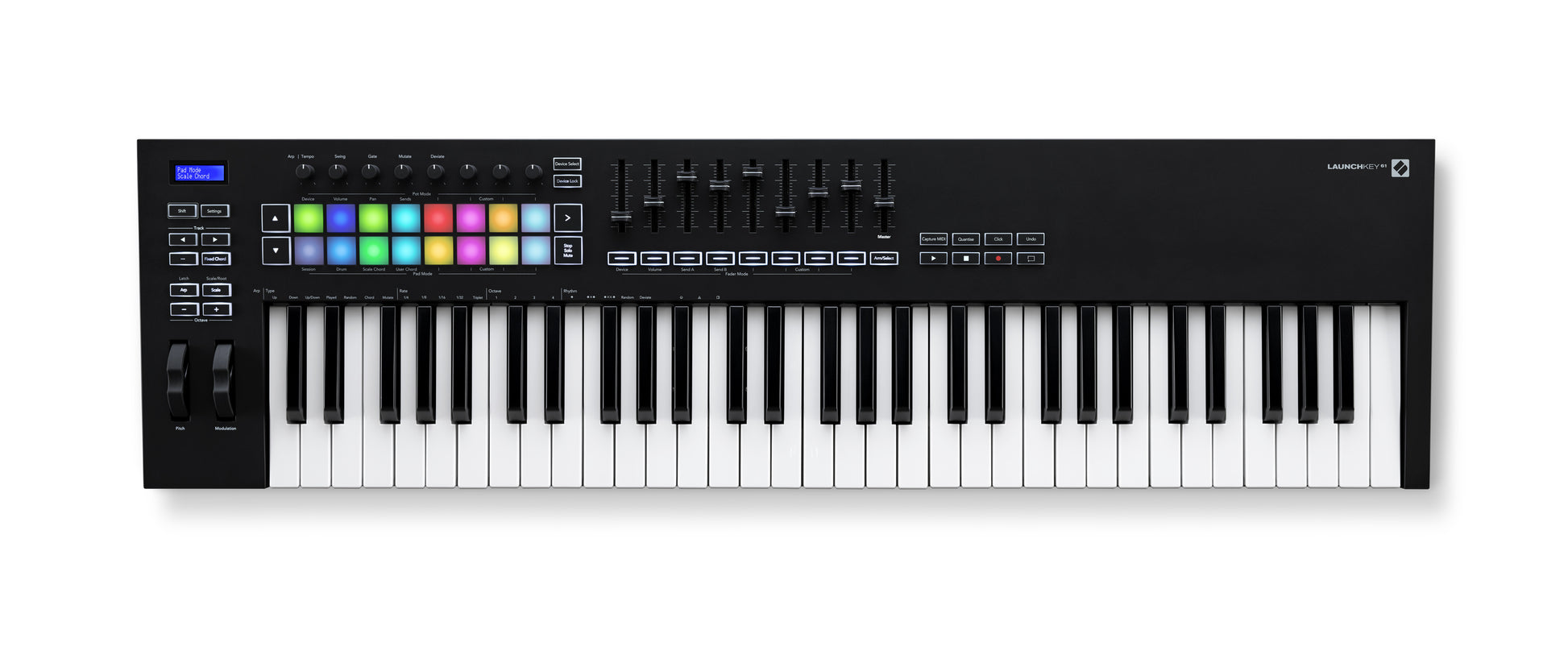

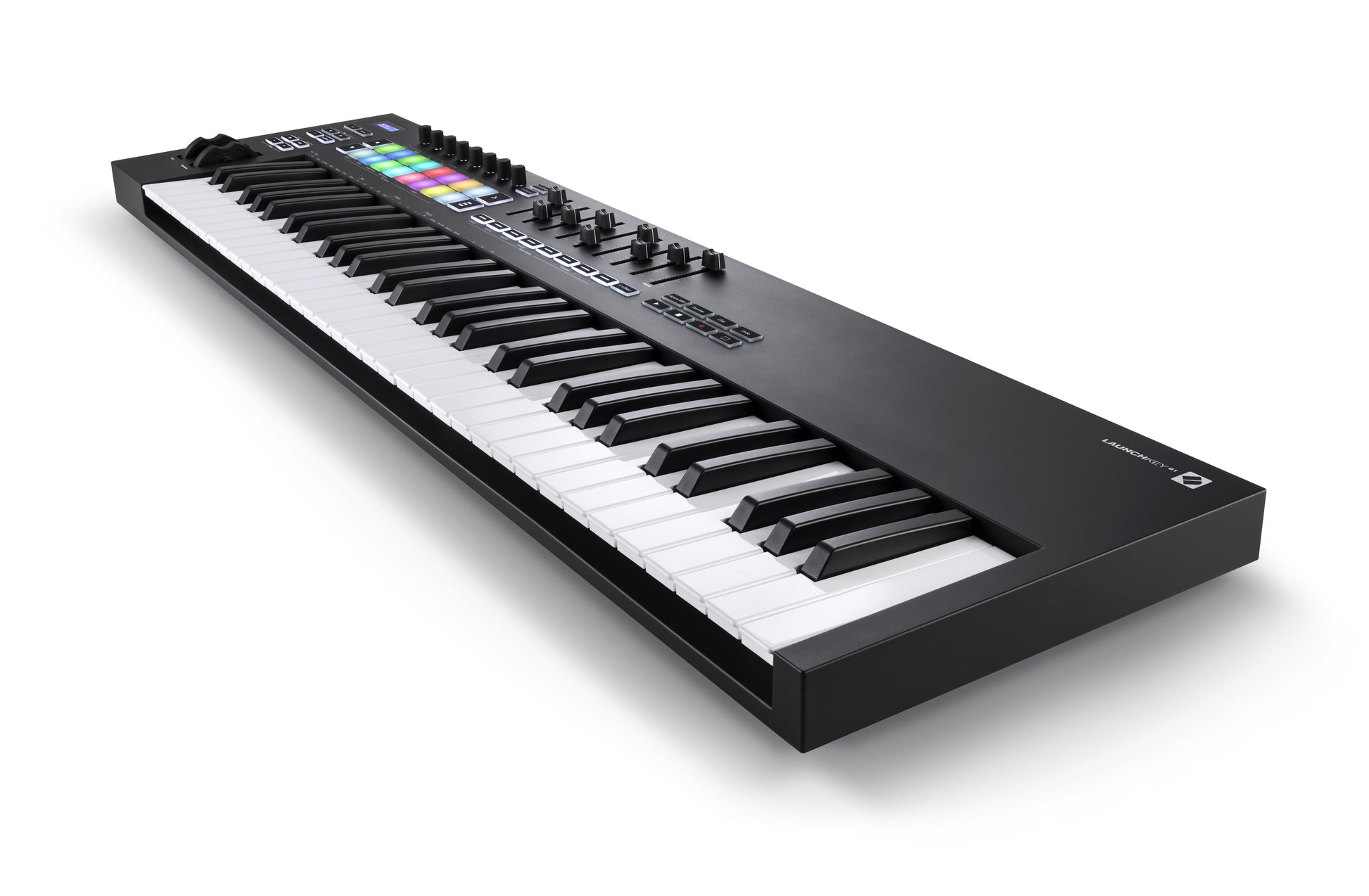

- Launchkey 61 - 258mm H, 952mm W, 77mm D
- 16x2 char screen
- 16 RGB backlit velocity sensitive pads
- Pitch bend and modulation wheels
- 8 knobs
- 9 sliders (49/61 key models)
- 5 pin MIDI out socket
- Arm/select buttons (49/61 key models)
- Arp/scale/fixed chord buttons
- Octave up/down buttons
- Play/stop/record/loop buttons
- Track navigation buttons
- Capture MIDI/quantise/click/undo buttons
- Stop/solo/mute button
- Scene launch button
- Device select/device lock buttons
- USB B socket
- Sustain pedal 1/4ā jack socket
- Kensington security slot
Ā SOFTWARE COMPATABILITY
- Works with Ableton Live 10 or later. Ableton LiveĀ Lite included.
- Full integration with Logic and Reason, plus out of the box functionality with other DAWs including Studio One, Cubase and Pro Tools, via HUI.
- Launchkey also works as a standard MIDI controller.
Ā POWER REQUIREMENTS
- USB bus powered
- Power supply not included
