SYSTEM REQUIREMENTS
macOS 11, 12, 13 (latest update)
Windows 10 (64-bit, latest Service Pack) or Windows 11 (latest Service Pack)
Intel Core i5 or equivalent CPU, or Apple Silicon (native mode or using Rosetta 2), 4 GB RAM (6 GB recommended)
Additional Requirements
Windows 10 (64-bit, latest Service Pack) or Windows 11 (latest Service Pack)
Intel Core i5 or equivalent CPU, or Apple Silicon (native mode or using Rosetta 2), 4 GB RAM (6 GB recommended)
Additional Requirements
- USB 2.0 Port, 9 GB free disk space for MASCHINE software and MASCHINE Library, 33 GB free disk space for KOMPLETE SELECT.
- An Internet connection and a graphics card which supports OpenGL 2.1 or higher are required to download and activate MASCHINE software. Once installed and activated, all products can be used offline.
ADDITIONAL INFO
- Supported Interfaces: Stand-alone, VST, VST3, Audio Units (64-bit), AAX 64, ASIO, CoreAudio, and WASAPI.
- MASCHINE requires activation: Activate using the serial number on the flyer inside the box.
- In case of graphics issues, please install the latest drivers for your GPU. This can be necessary even if Windows reports them as up to date.
- MASCHINE software, MASCHINE Factory Library, and KOMPLETE 14 SELECT are provided as downloads after registration — an Internet connection and a graphics card which supports OpenGL 2.1 or higher are required to download and activate the software. Once installed and activated, all products can be used offline.
DIMENSIONS AND WEIGHT
Width: 320 mm / 12.6", Length: 301 mm / 11.85", Height: 41 mm / 1.61", Weight: 2.2 kg / 4.85 lbsSETUP EXAMPLES
FEATURES AND SPECIFICATIONS
- Integrated hardware/software system includes sampler, arranger, mixer, sound library, FX, and more
- 8 GB MASCHINE library with samples, one-shots, sliced loops, sampled instruments, drums synths, presets, patterns, drum kits, and songs
- Includes 45 GB KOMPLETE 14 SELECT library
- 25 pro-quality studio and creative FX including filter, EQ, delay, reverb and compressor

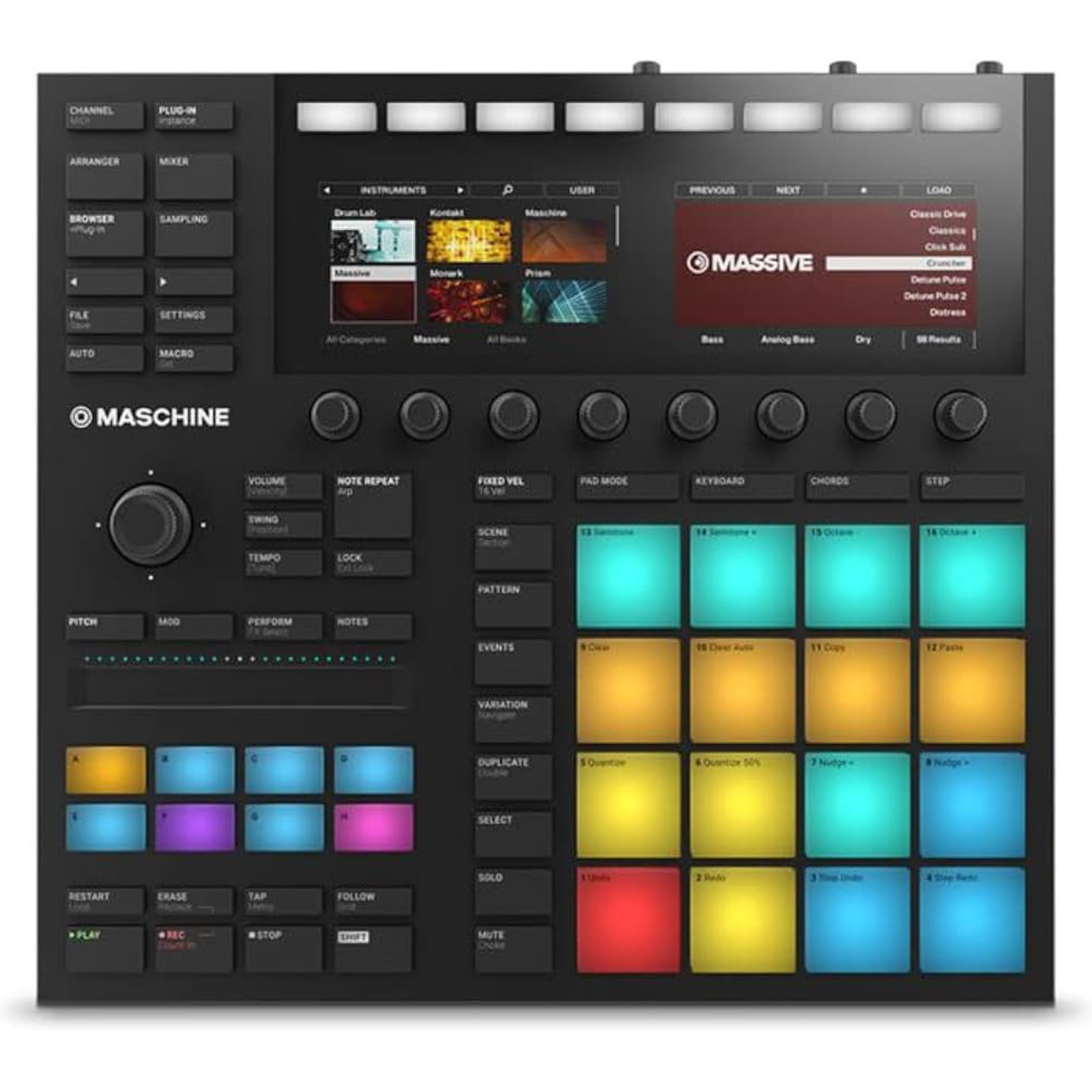

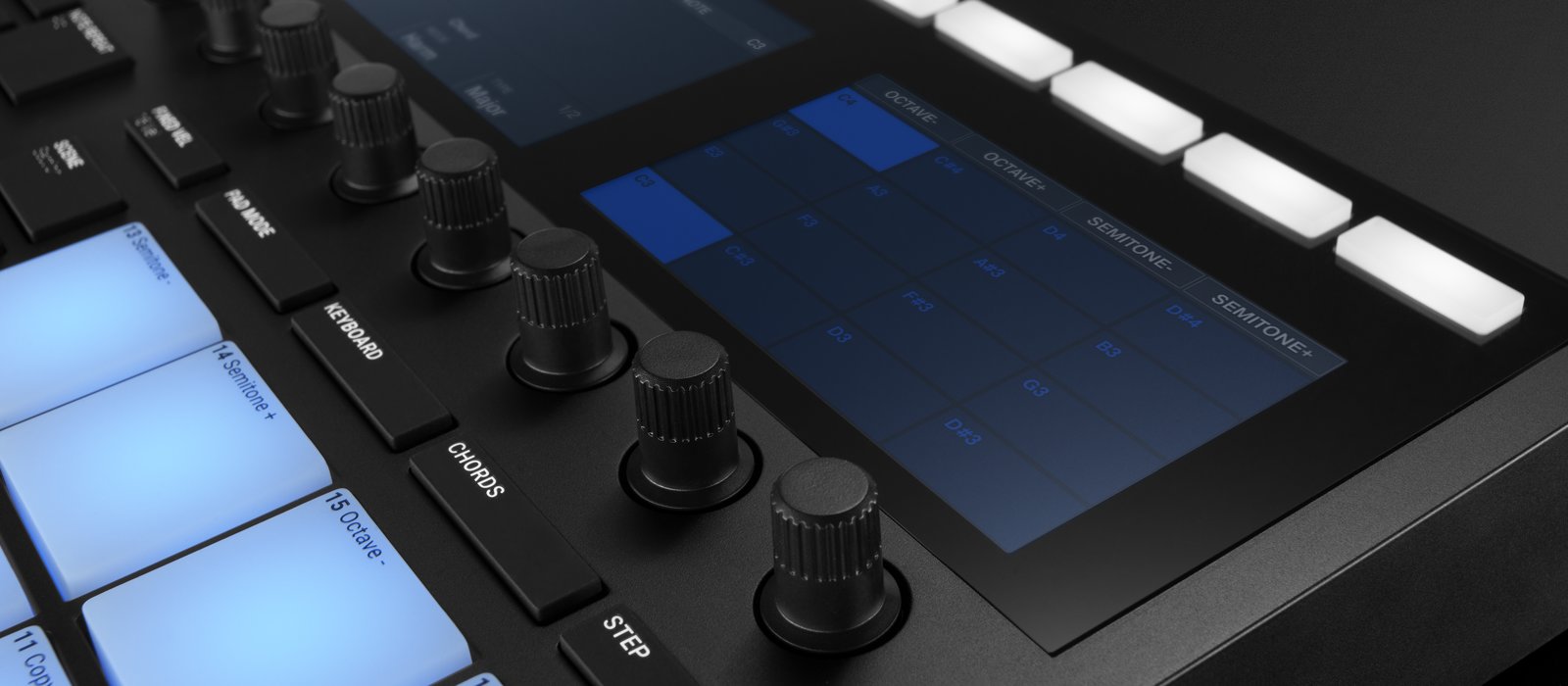

- 2 high-resolution RGB color displays for precision sample slicing, sound tweaking, note editing, mixing, browsing, and more

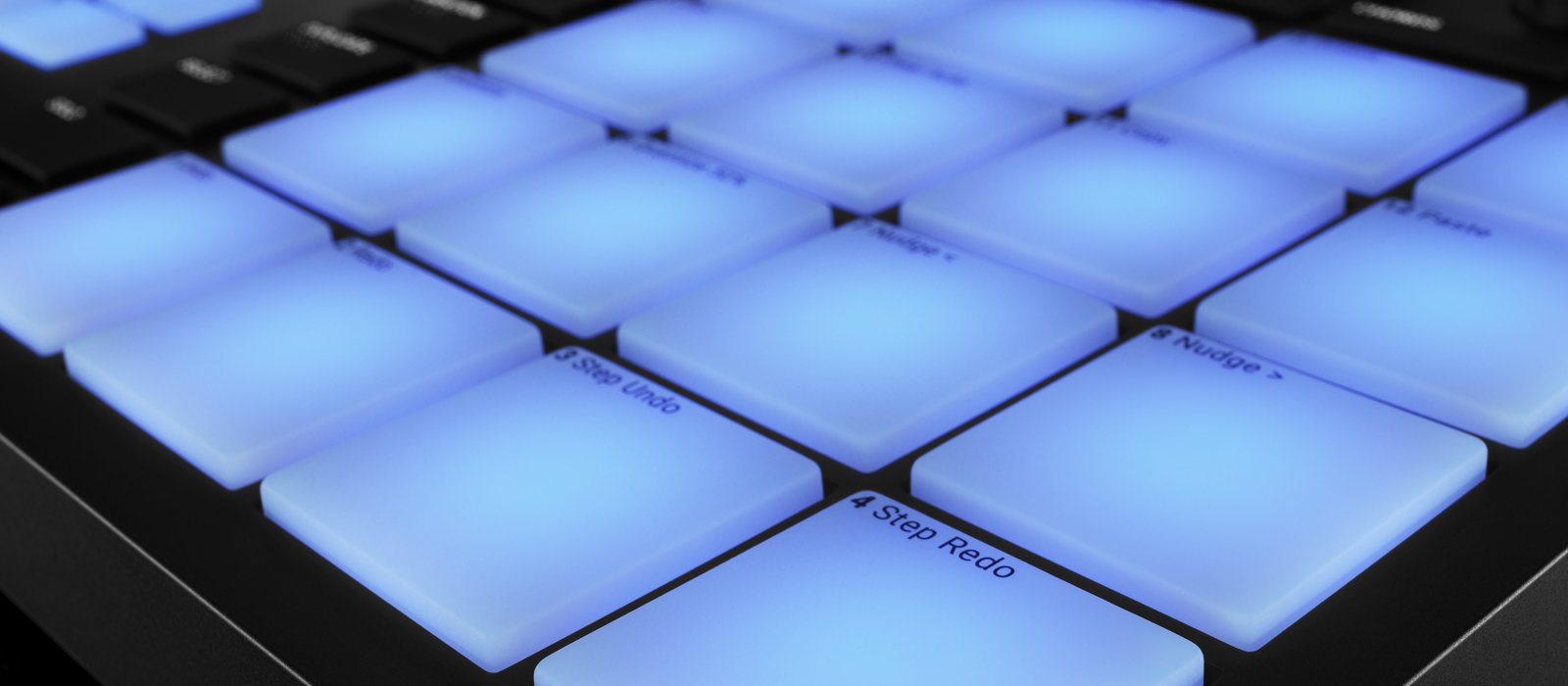

- 16 large, ultra-sensitive pads make two-handed drumming easy

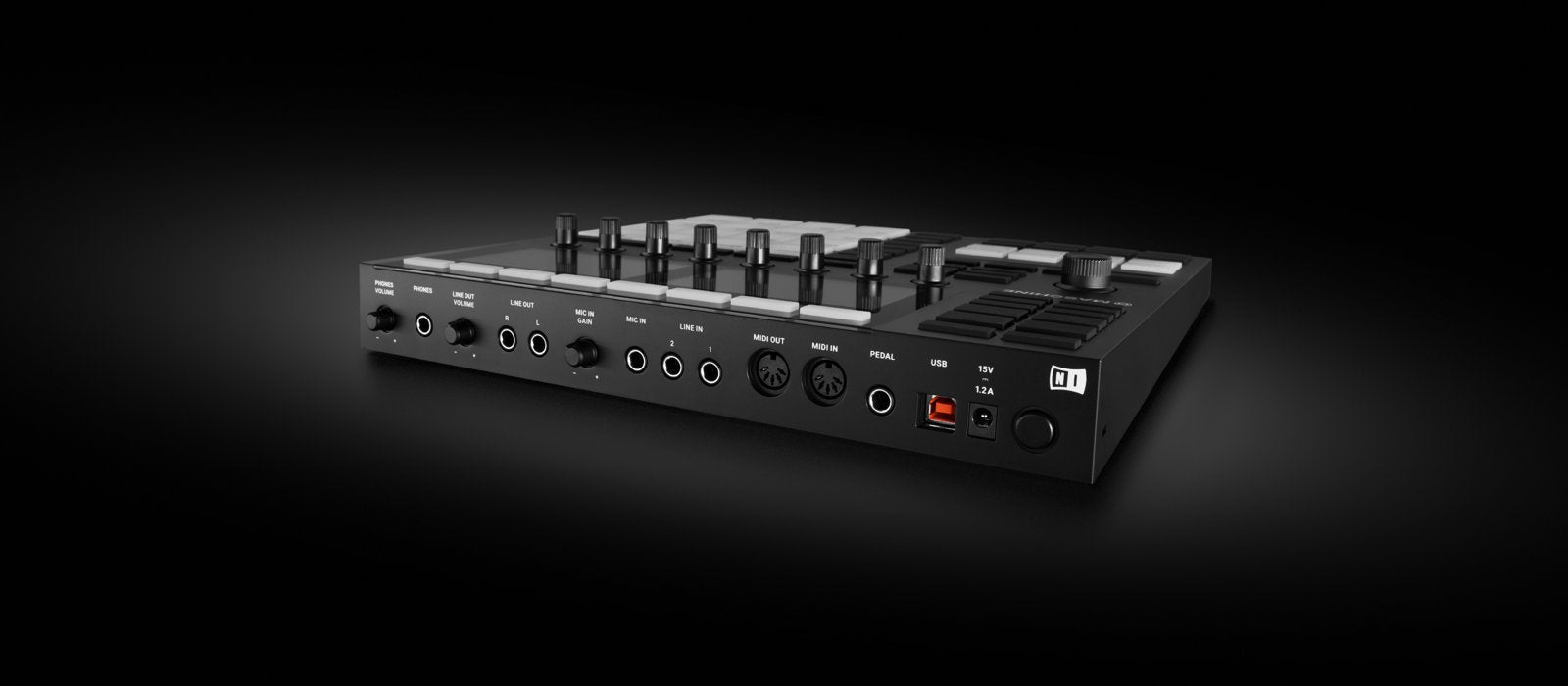

- Pro-grade, 96 kHz / 24-bit audio interface with 2 x ¼” TRS line outputs, 2 x ¼” TRS line inputs, ¼” dynamic mic input, stereo headphone output, 1 x MIDI In, 1 x MIDI out; 1 x Footswitch
- 8 touch sensitive knobs for parameter tweaking

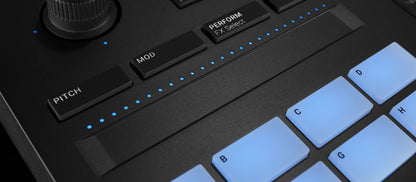

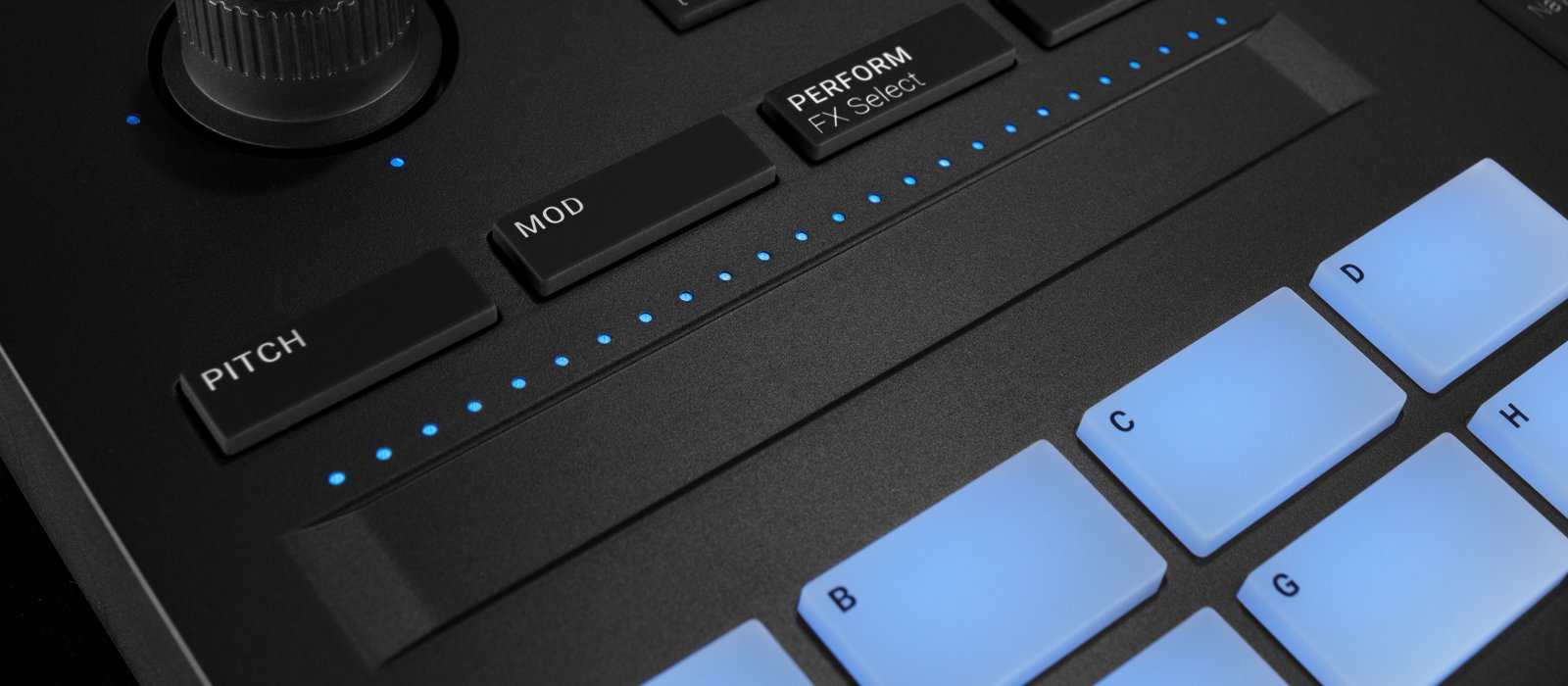

- Smart Strip for strumming notes, pitch bending sounds, performing with FX, and more

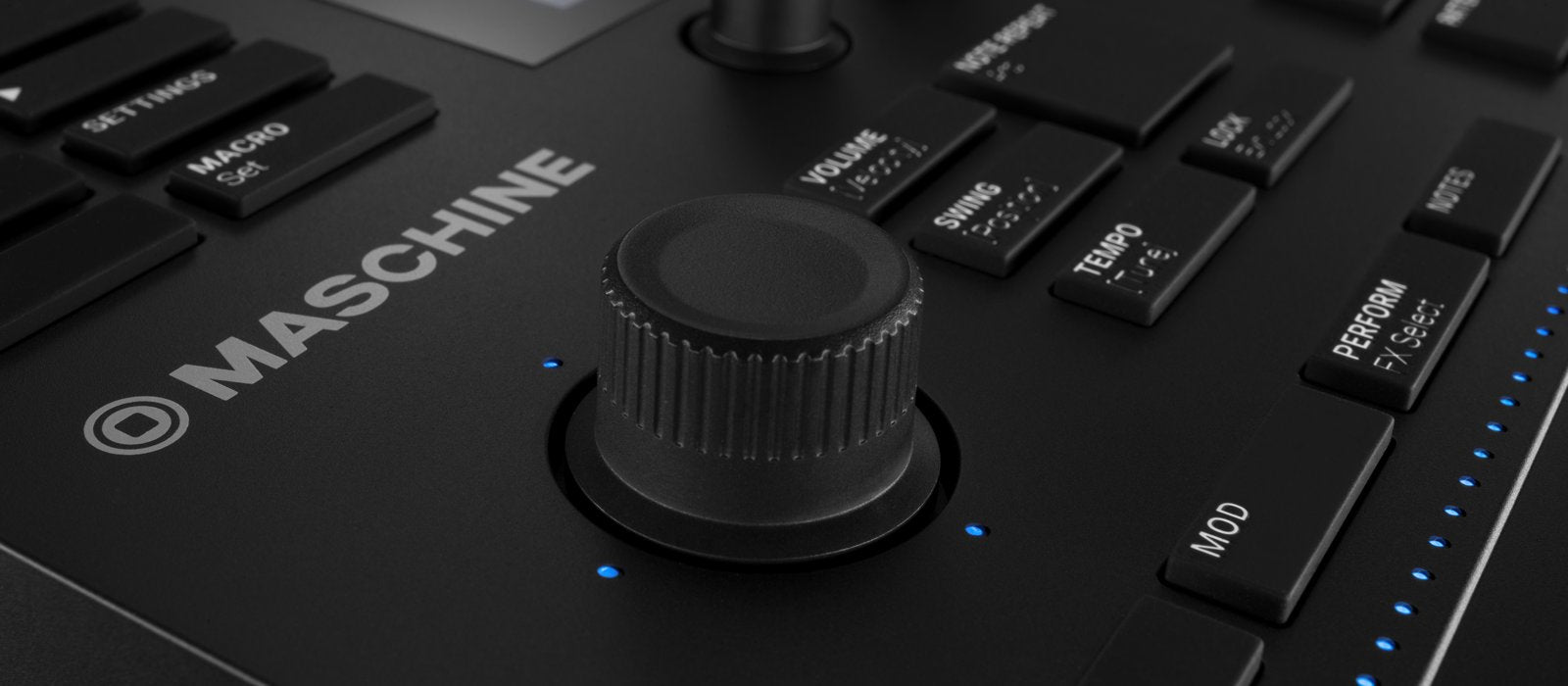

- Four-directional push encoder for browsing, navigating, adjusting levels and balance
- Powered via USB 2.0
- Seamless integration with KOMPLETE, NKS-ready instruments, MASCHINE Expansions, and the new KOMPLETE KONTROL S49/S61 Keyboards
- Classic groovebox features including 16 velocity levels, swing, pad link, note repeat, step sequencer, and vintage MPC 60/SP 1200 sampling emulation
- Compatible with all major DAWs (including Ableton Live, Logic Pro, Cubase, GarageBand, FL Studio, Avid Pro Tools, PreSonus Studio One, and more) as a VST, Audio Units, or AAX 32 and AAX 64 plug-in with full multi-core support
AUDIO INTERFACE SPECIFICATIONS
All results measured in accordance with the Audio Engineering Society’s AES17 standards.Line-In Full Scale Level +18,6 dBu Dynamic Range 100 dB THD+N 0.003 % Frequency Response: 20Hz-20kHz +/- 0.1 dB Crosstalk L/R -96 dB Mic Input (max gain) Full Scale Level -32 dBu Dynamic Range 90 dB THD+N 0.01 % Frequency Response: 20Hz-20kHz +/- 0.4 dB Mic Input (min gain) Full Scale Level -3.4 dBu Dynamic Range 102 dB THD+N 0.004 % Frequency Response: 20Hz-20kHz +/- 0.15 dB Line Out Maximum Output Level +18.0 dB Dynamic Range 102 dB THD+N 0.003 % Frequency Response: 20Hz-20kHz +/- 0.5 dB Crosstalk L/R -100 dB Headphone Out Maximum Output Level 29.4 mW @ 33 Ohm load Dynamic Range 102 dB THD+N 0.007 % Frequency Response: 20Hz-20kHz +/- 0.35 dB Crosstalk L/R -60 dB
