Features

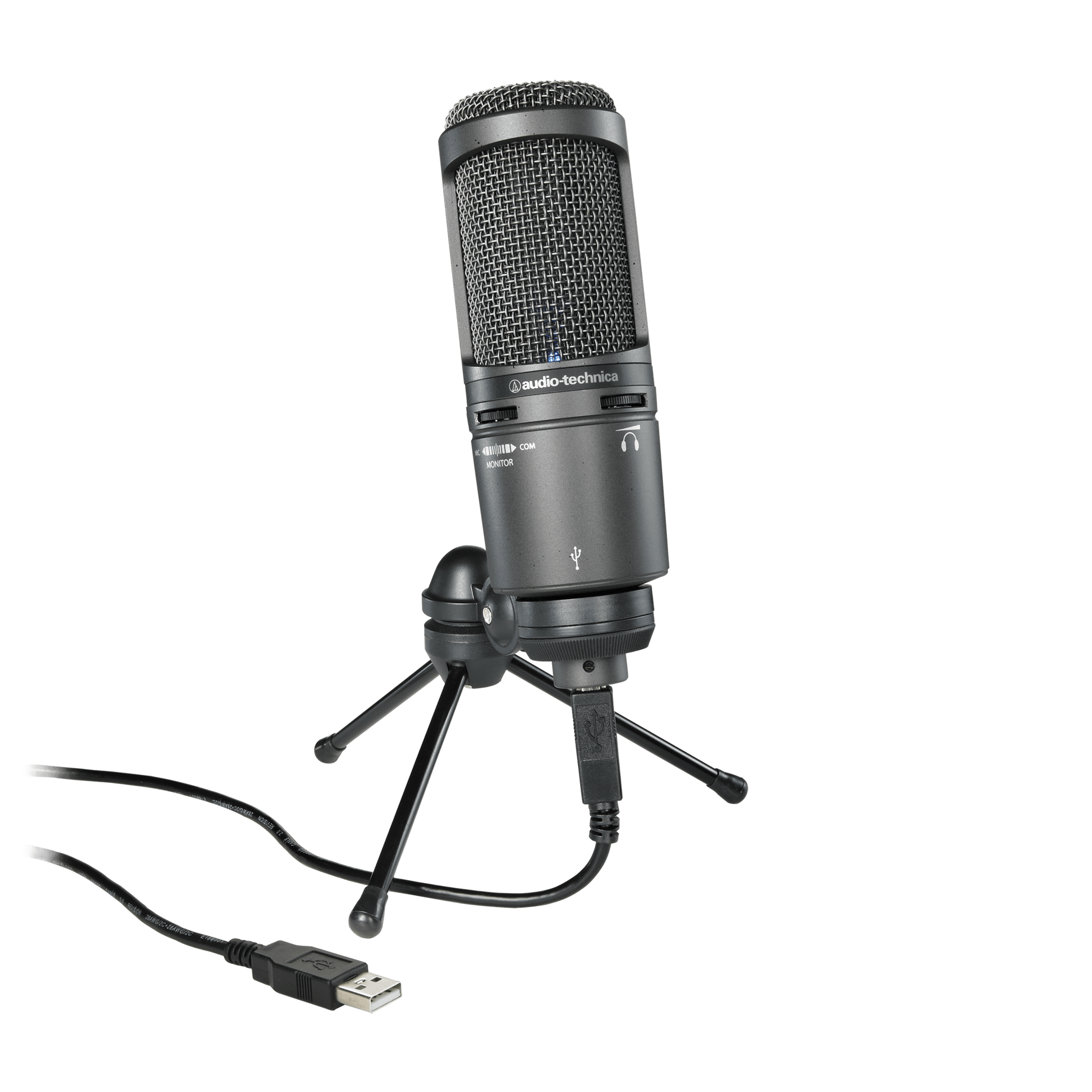

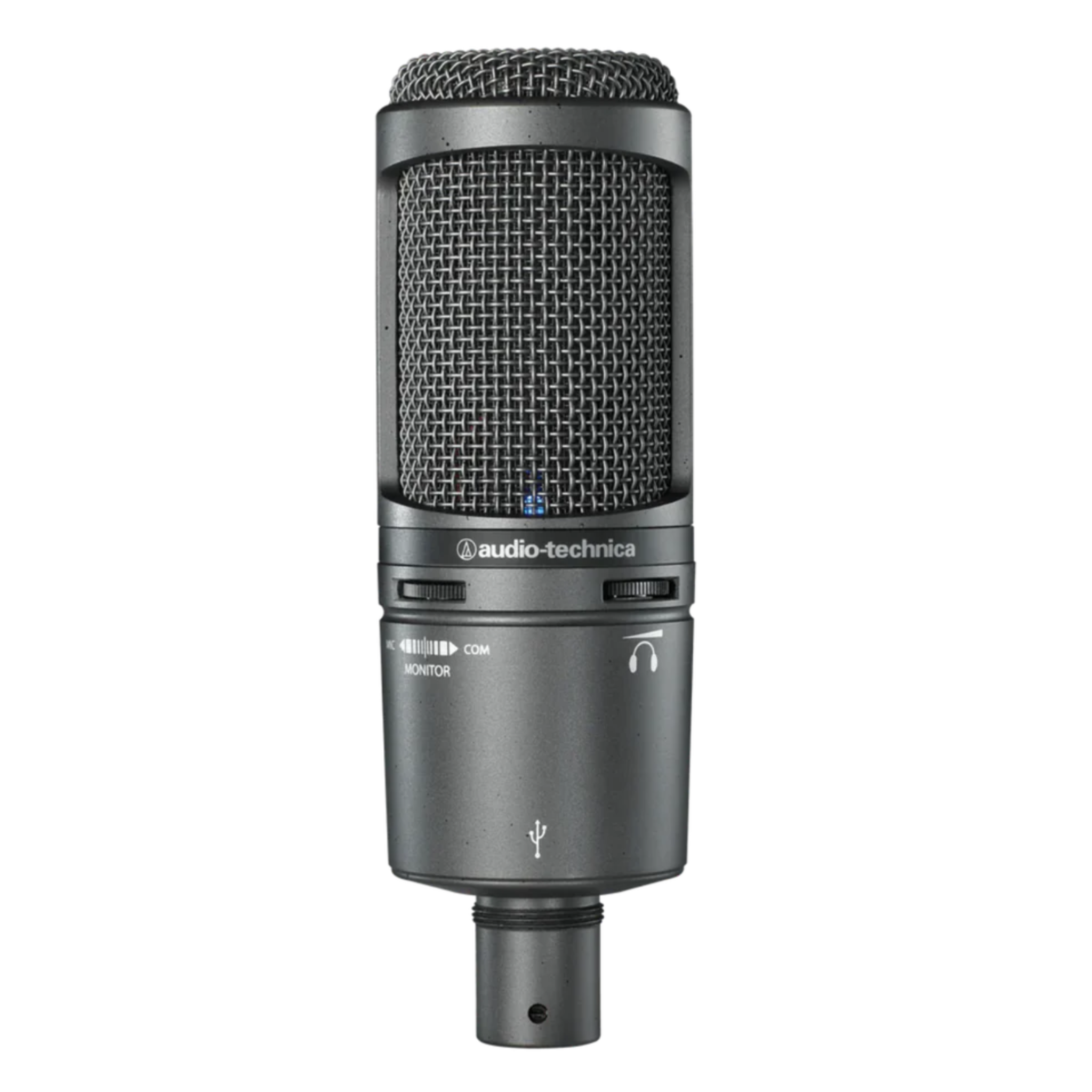

Equipped with a USB output, the AT2020USB+ is designed for digitally capturing music or any acoustic audio source using your favorite recording software. The microphone offers the critically acclaimed, award-winning sound of the AT2020, with studio-quality articulation and intelligibility perfect for singer/songwriters, podcasters, voice-over artists, field recorders, and home studio recorders. The AT2020USB+ features a built-in headphone jack with volume control that allows you to directly monitor your microphone signal with no delay. It also offers mix control that blends microphone and pre-recorded audio. The microphoneās cardioid pickup pattern delivers excellent off-axis rejection, while its A/D converter with a 16-bit, 44.1/48 kHz sampling rate ensures extremely articulate sound reproduction. Audio-Technicaās state-of-the-art design and manufacturing techniques ensure that the microphone complies with the companyās renowned consistency and reliability standards.
Ā
Ā
Ā
Specifications
Microphones | |
---|---|
Element | Fixed-charge back plate, permanently polarized condenser |
Polar Pattern | Cardioid |
Frequency Response | 20 - 20,000 Hz |
Power Requirements | USB Power (5V DC) |
Bit Depth | 16 bit |
Sample Rate | 44.1/48 kHz |
Volume Control | Mix control; Headphone volume control |
Weight | 386g |
Dimensions | 6.38" (162.0 mm) long, 2.05" (52.0 mm) maximum body diameter |
Output Connector | USB-type |
Headphone Output Power | 130 mW (at 1 kHz, 10% T.H.D., 32 ohm load) |
Headphone Jack | 3.5 mm (1/8") TRS (stereo) |

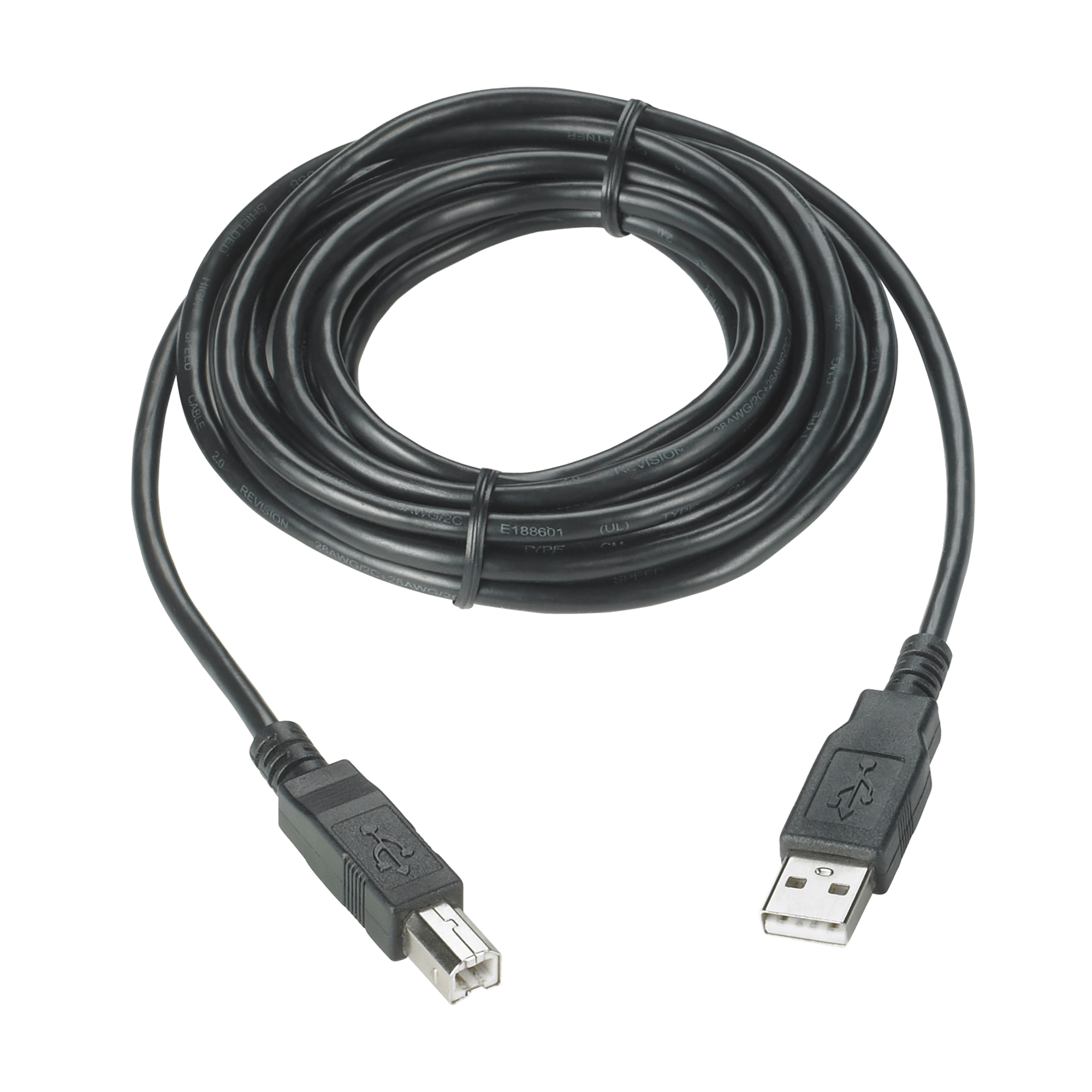

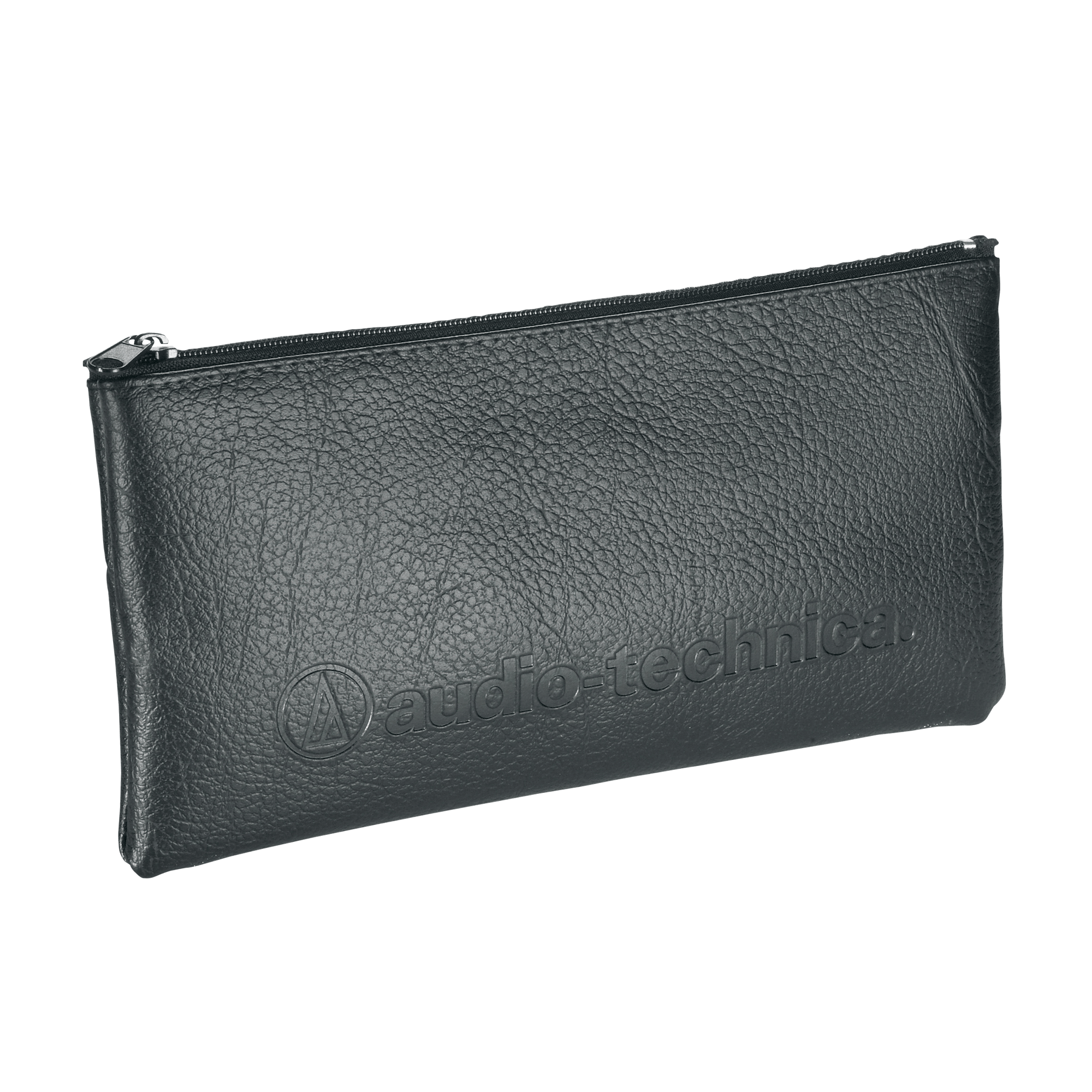

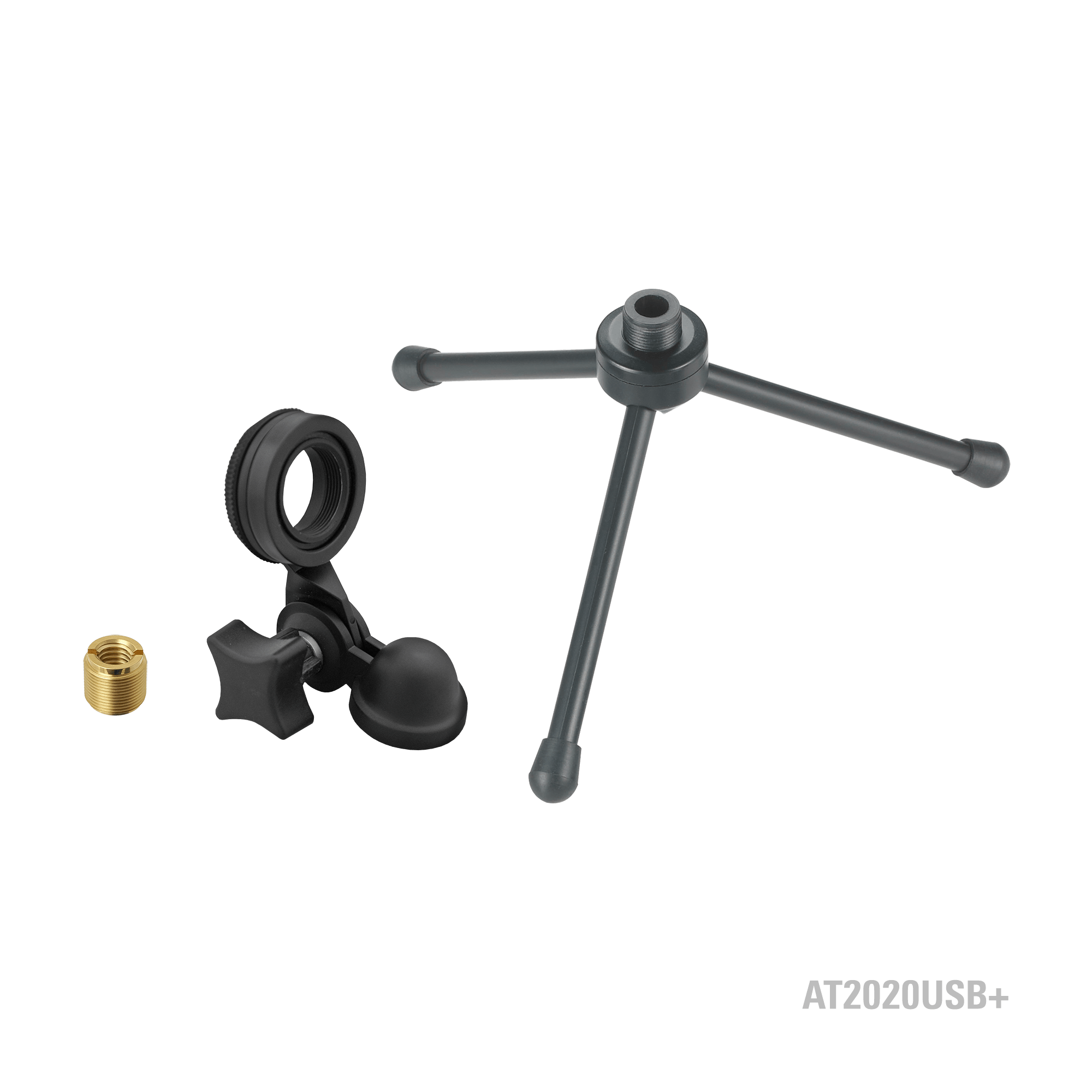

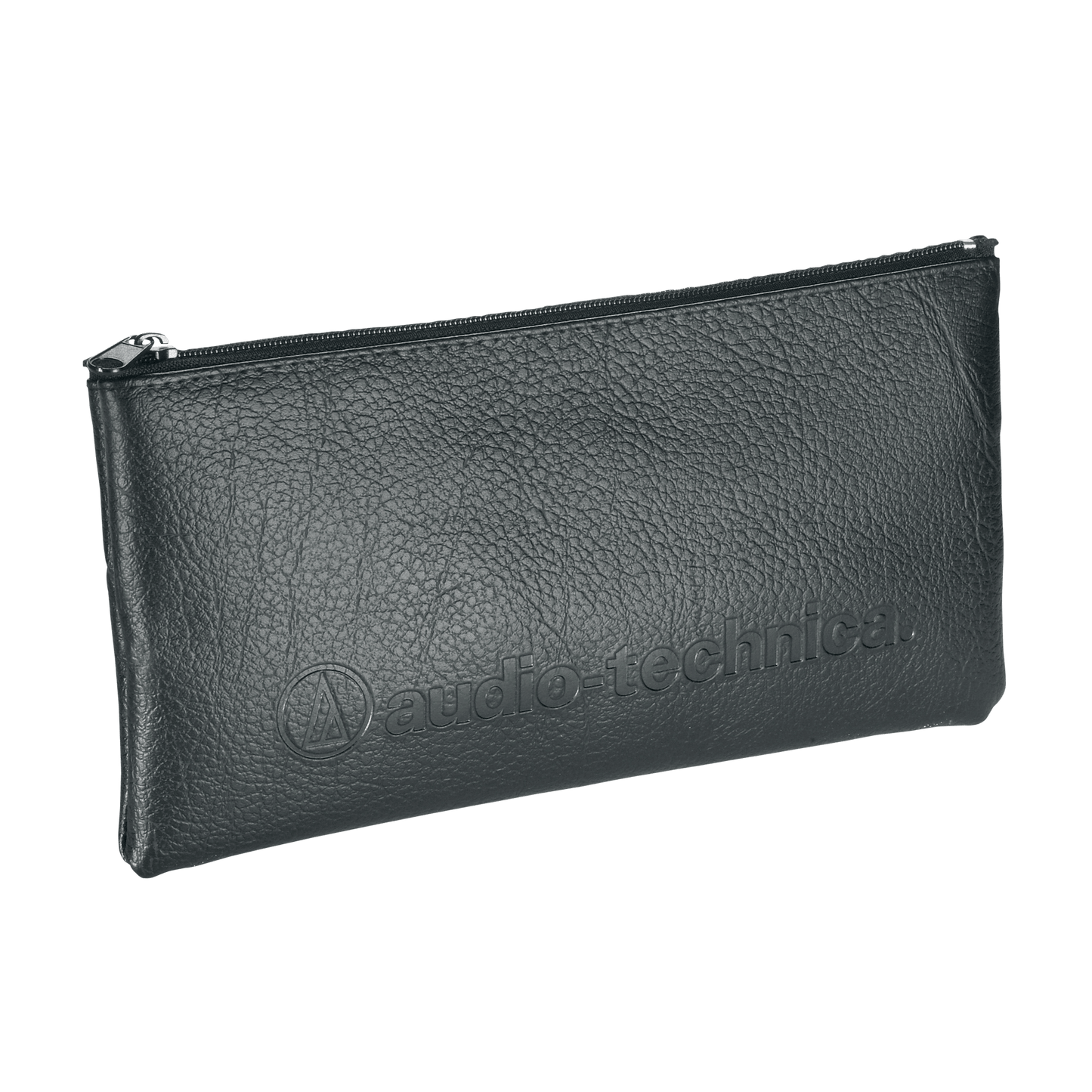

Accessories Included | Pivoting stand mount for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch; tripod desk stand; 10' (3.1 m) USB cable |
