Main Features
Included Arturia instruments - 500 vintage & modern keyboard presets with Analog Lab Intro
Arturia FX:
- Rev PLATE-140 reverb
- Pre 1973 vintage preamp
- Delay TAPE-201 echo
- Chorus JUN-6 analog chorus
Ableton Live Lite - compose, record, produce anything
Tutorials - Learn recording and music production with MiniFuse, starting with the basics
Exclusive content - Tips, tricks, and advice from industry experts
Dedicated online portal - Access everything you need online in one place
Subscriptions - Complimentary introductions to world-class audio & mixing services

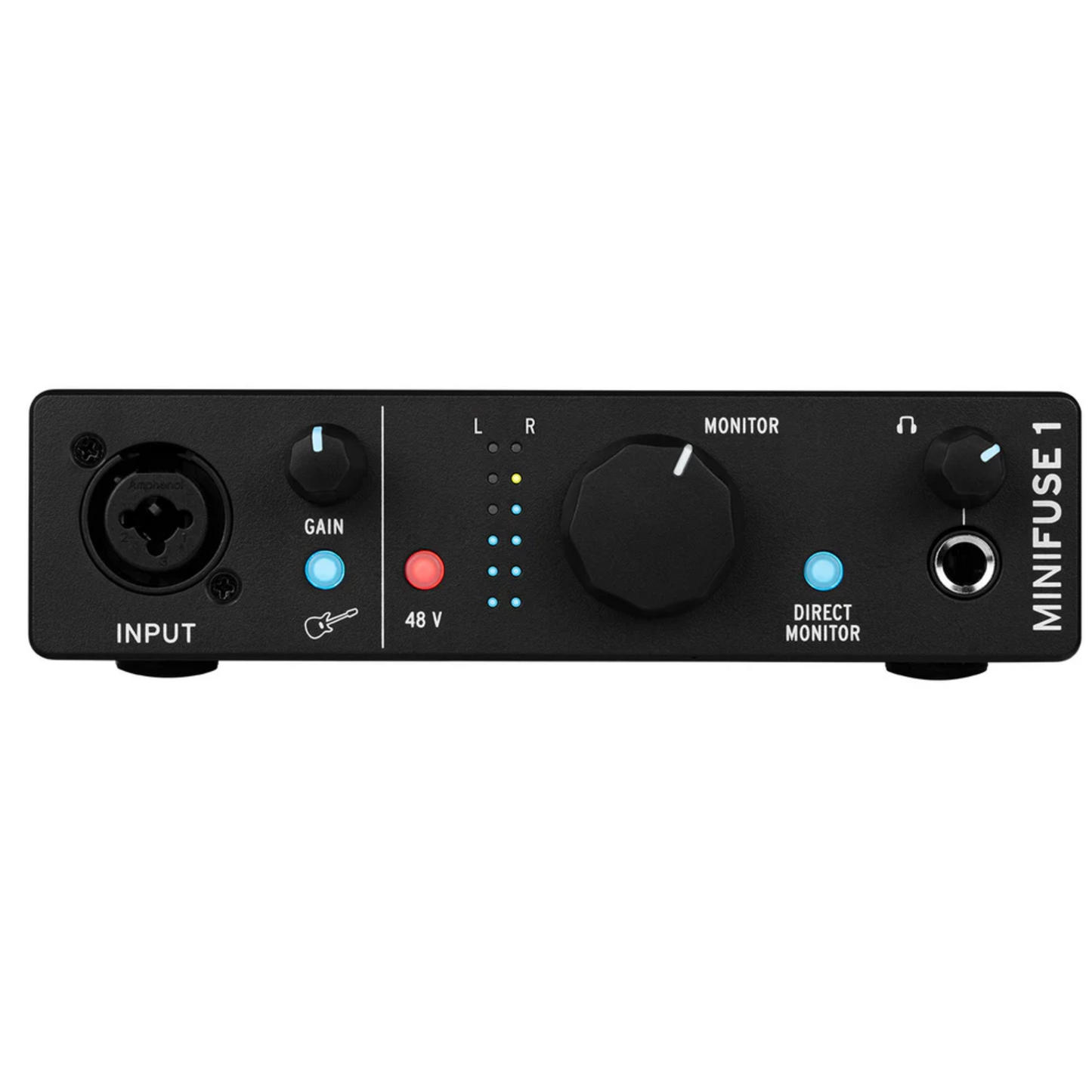

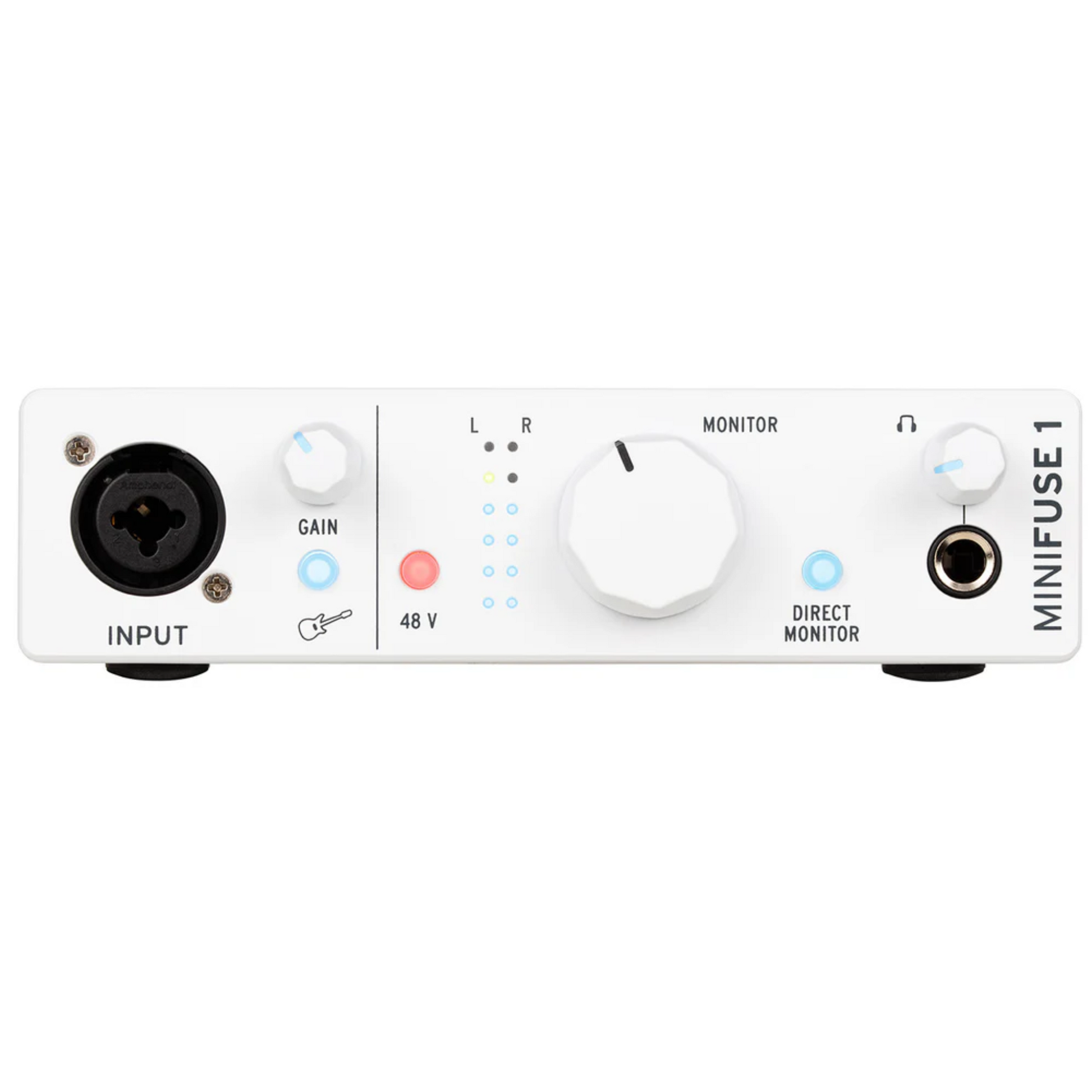

1 x combo Mic/Inst/Line XLR Input with 48V phantom power

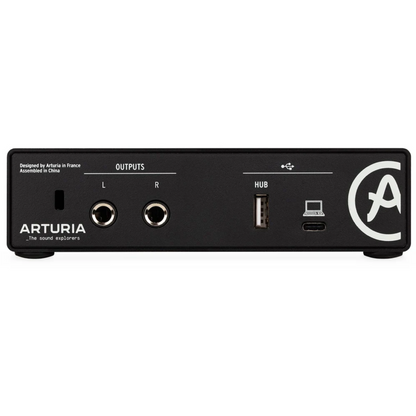

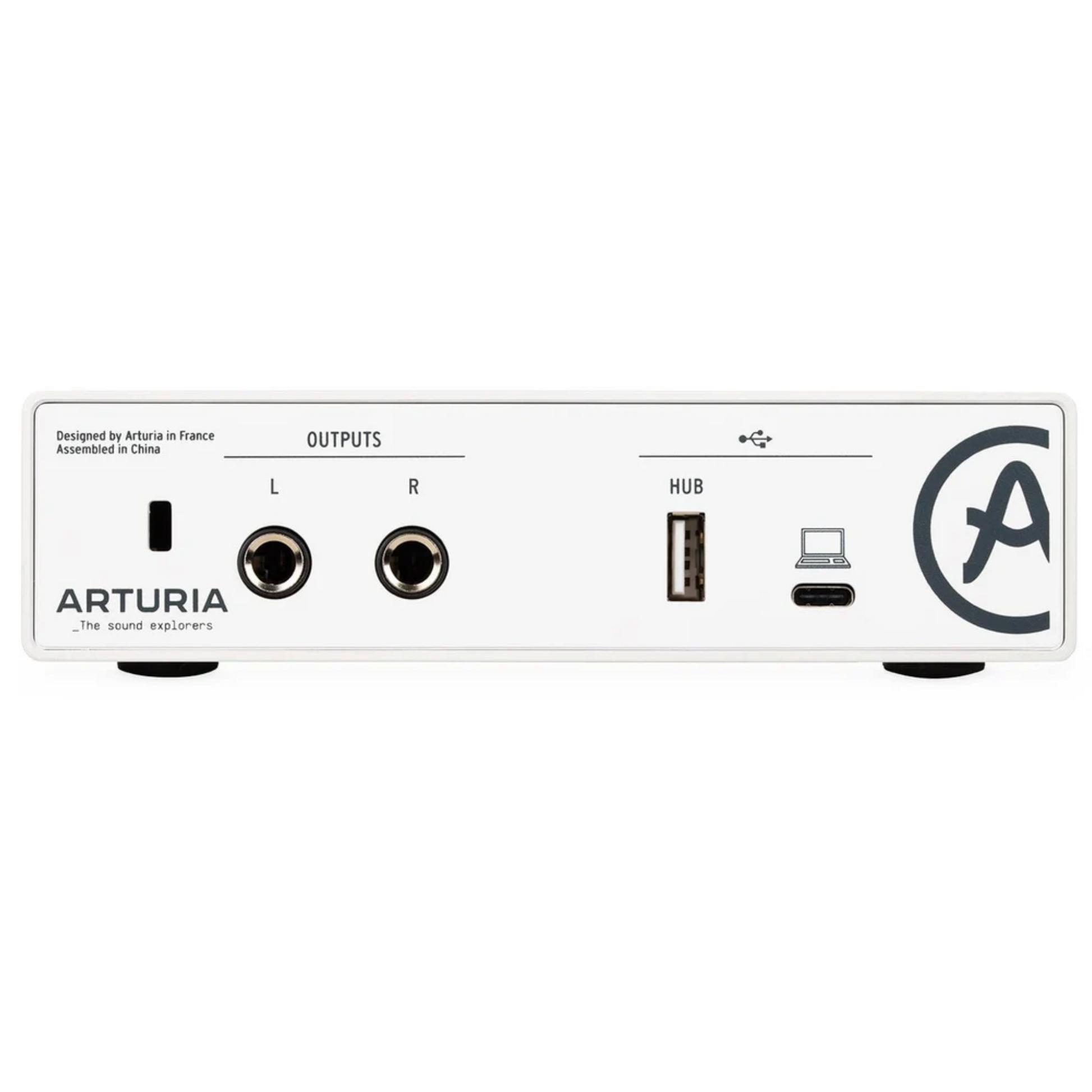

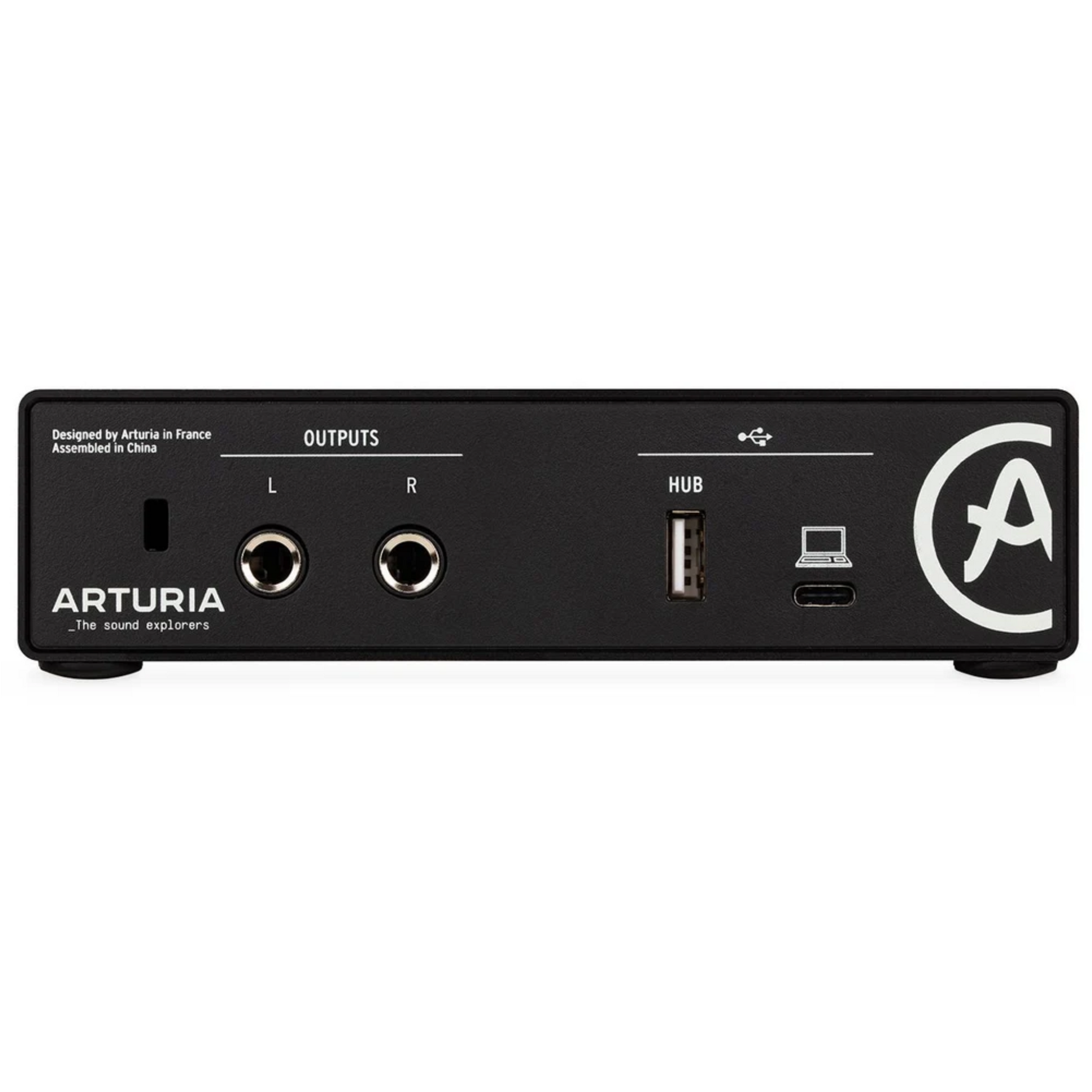

2 x 1/4" TRS balanced line outputs with volume control
1 x stereo headphone output with volume control
Direct Monitor switch
1 x USB2 type A hub (250mA max.)
1 x stereo virtual loopback channel
USB-C interface compatible with PC and Mac, fully USB 2.0 compatible
Bus-powered
Platforms requirements
Windows
- Windows 10 or later (64-bit)
- 4 GB RAM (8 GB+ recommended)
- 64-bit Intel® Core™ or AMD multi-core processor (i5 processor or faster recommended)
Apple
- OS X 10.13 or later (64 bit)
- 4 GB RAM (8 GB+ recommended)
- 64-bit Intel® Core™ or AMD multi-core processor (i5 processor or faster recommended)
Size & weight
- size : 6 x 3.9 x 1.65 inches (154 x 100 x 43mm)
- weight : 0.9 lbs (.336 Kg)
Specifications
Line Inputs
• Input impedance: 16kΩ
• Maximum input level: +22dBu
• Gain range: 56dB
• Frequency response 20Hz to 20kHz: +/-0.05dB (min gain)
• Dynamic range: 110dB typical (A-weighted)
• THD+N @ 1kHz: -100dB typical (un-weighted)
Instrument Input
• Input impedance: 1MΩ on Tip
• Maximum input level: +11.5dBu
• Gain range: 56dB
• Frequency response 20Hz to 20kHz: +/-0.06dB (min gain)
• Dynamic range: 110dB typical (A-weighted)
• THD+N @ 1kHz: -91dB typical (un-weighted)
Microphone Preamps
• Input impedance: 2.5kΩ
• Maximum input level: +9dBu
• Gain range: 56dB
• Equivalent Input Noise (EIN): -129dB typical (A-weighted)
• Frequency response 20Hz to 20kHz: +/-0.06dB (min gain)
• Dynamic range: 110dB typical (A-weighted)
• THD+N @ 1kHz: -100dB typical (un-weighted)
Speakers
• Output impedance: 94Ω
• Maximum output level: +12dBu
• Frequency response 20-20kHz: +/-0.09dB
• Dynamic range: 107.5dB typical (A-weighted)
• THD+N @ 1kHz: -101dB typical (un-weighted)
Phones
• Output impedance: 10Ω
• Maximum output level: +11.4dBu
• Frequency response 20-20kHz: +/-0.09dB
• Dynamic range: 104dB typical (A-weighted)
• Power @ 33ohm: 137mW
Supported Sample rates
• 44.1kHz, • 48kHz, • 88.2 kHz,
• 96kHz, • 176.4kHz, • 192 kHz
