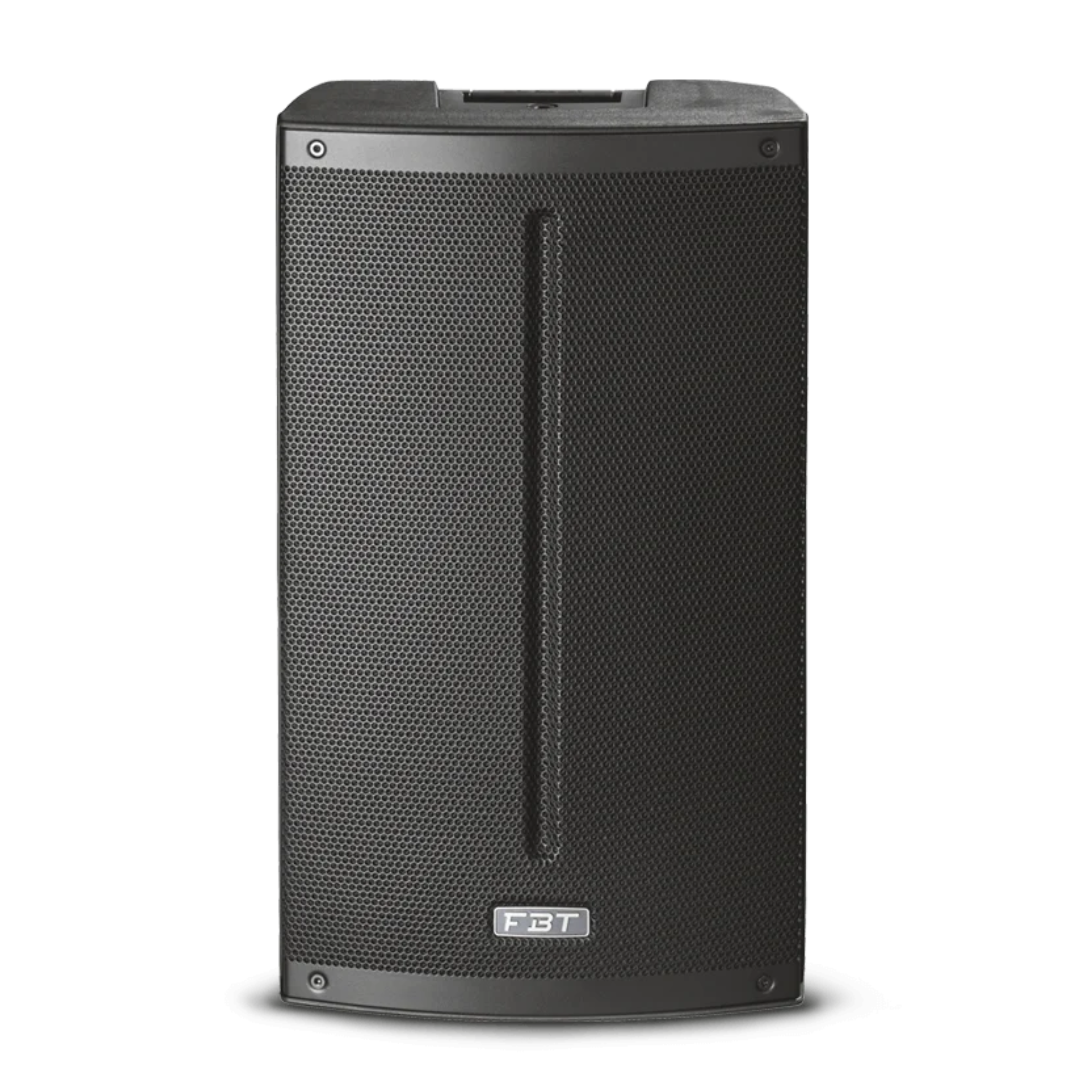

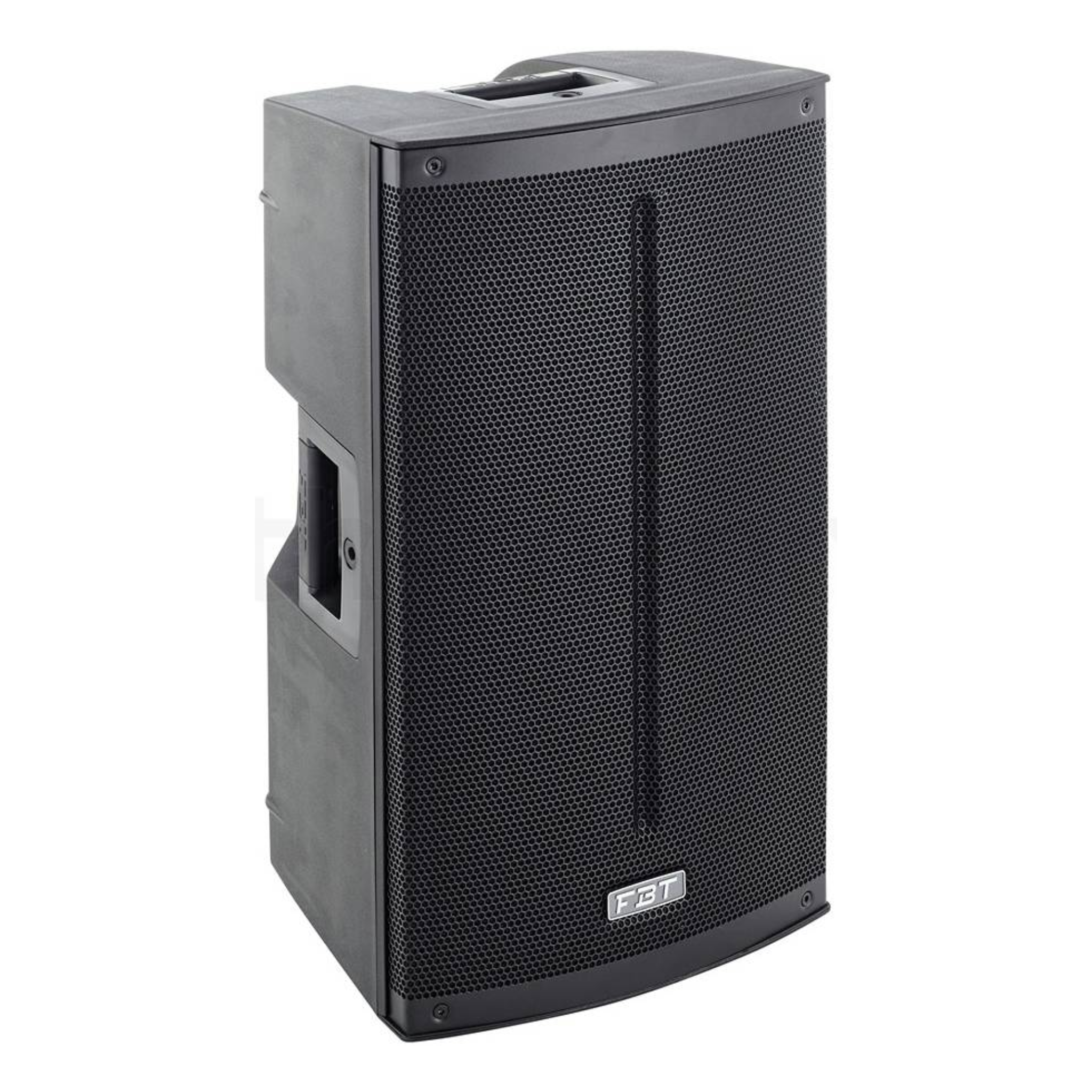

The FBT XLITE 112A is a two-way design incorporating a 12” low-frequency woofer and 1” HF compression driver coupled to a 90°H x 60°V constant directivity horn. With a frequency range of 50Hz - 20kHz the FBT XLITE 112A speaker provides high-fidelity sound for speech and music applications with a maximum SPL of 129dB.

The bi-amplified FBT XLITE 112A active speaker features a 1200W low-frequency and 300W high-frequency amp.

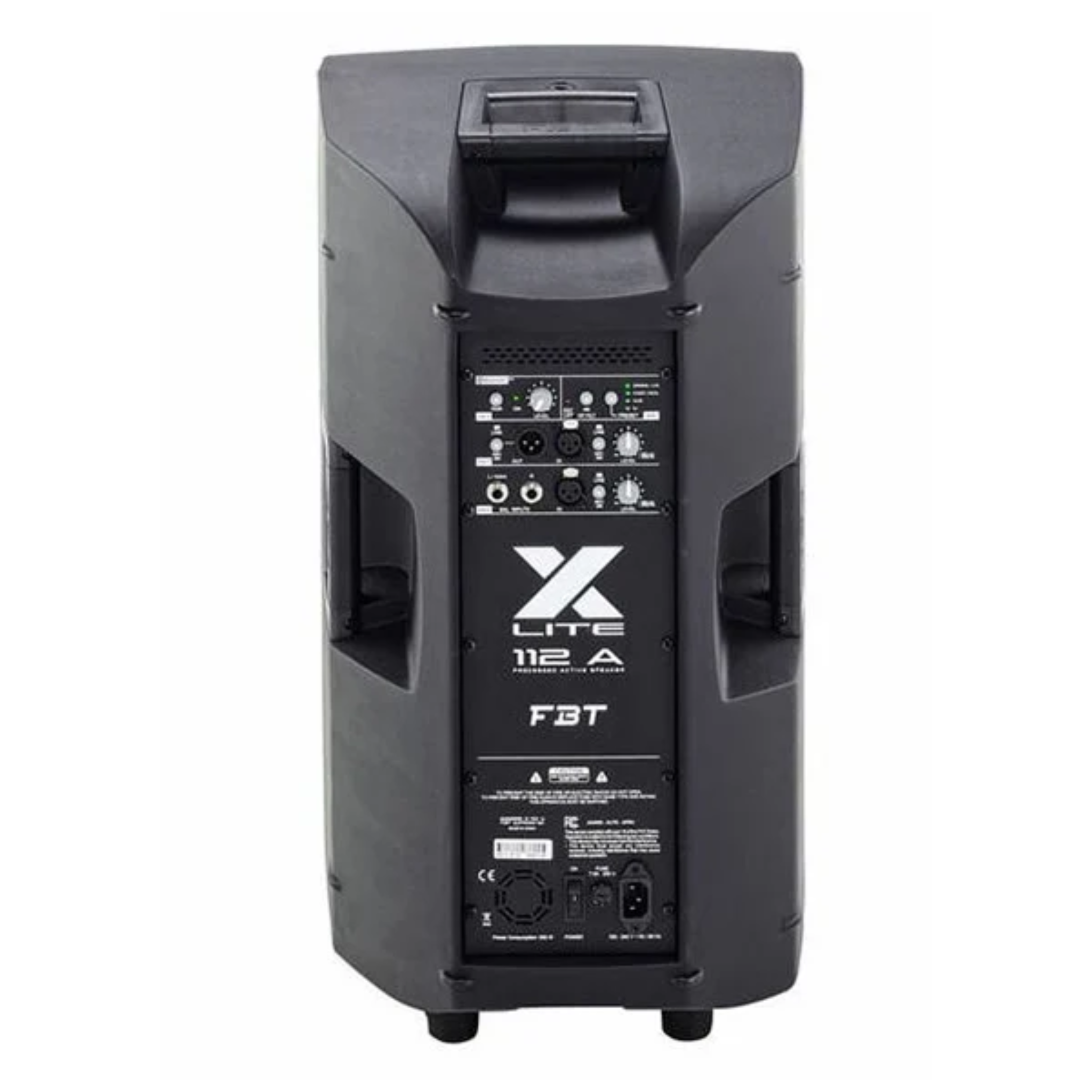

The control panel features a three-channel mixer with two micro-line inputs, stereo input and a dedicated channel for Bluetooth 5.0; two xlr inputs, stereo input, XLR output with ch1 or mix link selector, HP filter, two mic-line selectors, DSP preset selector, Bluetooth 5.0 with pairing led. 4 x M10 rigging points built-in into the cabinet along with the optional mounting brackets allow the FBT XLITE 112A speaker to be surface mounted on walls or ceilings.

A standard 1.38” speaker stand socket allows the FBT XLITE 112A to be mounted on a speaker stand.

KEY FEATURES

2-way bi-amplified system in a bass reflex
Polypropylene moulded enclosure
Woofer custom 12” (LF) / 2,5” voice coil
1” throat / 1,4” voice coil HF compression driver
1200/300W built-in amplifier (LF/HF)
Bluetooth 5.0
3-channels mixer
4 DSP presets
30° / 45° monitor taper
Universal switching mode power supply 100-240 VAC
M10 rigging points
4 DSP presets

SPECIFICATIONS

Configuration: 2 Way
Frequency response: 50Hz - 20KHz
Low-frequency woofer: 12" / 2.5" VC
High-frequency driver: 1" - 1.4" VC
Maximum SPL cont/peak: 124 / 129
Dispersion: 90 x 60
Input impedance: 22
Input connector: XLR IN/OUT, Jack ST
Net Dimension (WxHxD): 356 x 619 x 357
Net Weight: 16.3 KG
Transport Dimension (WxHxD): 440 x 700 x 445
Transport Weight: 18.9
Built-in amplifier: 1200 / 300 LF/HF
